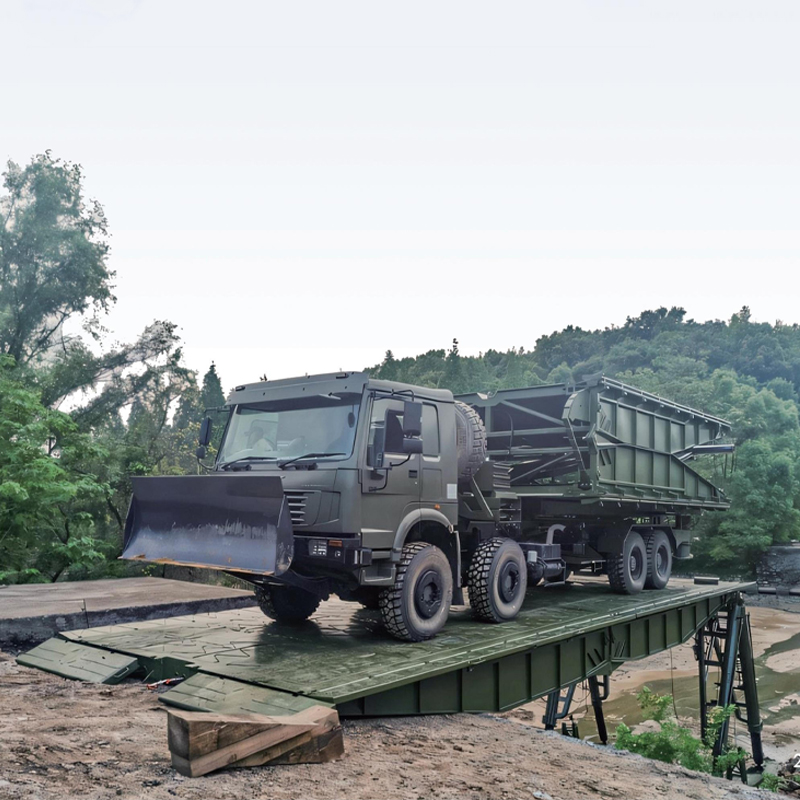

The HZ68 Heavy Tactical Bridge is a advanced integrated bridging system, primarily designed to help military and emergency teams overcome small & medium rivers, dry gaps, and marshlands. Compared with its predecessor, it features a built-in dozer blade function (for on-site terrain leveling), significantly higher load capacity, a wider bridge deck, a larger trestle adjustment range, fewer required operators, and a more robust cross-country chassis—making it ideal for complex, time-sensitive tactical and emergency scenarios
Core Advantages
Superior Load-Bearing Capacity: Meets MLC80 load standards, safely supporting heavy armored vehicles, artillery, and large-scale emergency transport—outperforming the last-gen bridge in handling high-weight equipment.
Built-In Dozer Blade: Eliminates the need for additional terrain preparation equipment; the integrated dozer blade levels uneven ground (e.g., marshland edges, river banks) before bridge laying, saving on-site setup time.
Ultra-Fast Erection: Achieves 12min single-span erection and 60min whole-set erection—critical for military tactical maneuvers or emergency response where every minute counts.
Wide & Stable Passage: Features a 4m trackway width (overall width 4.5m) to accommodate two-way light tactical vehicles or single-way heavy armored vehicles, ensuring smooth troop/equipment movement.
Strong Cross-Country Adaptability: Equipped with a high-performance cross-country chassis, supporting a max speed of 90km/h for rapid deployment to remote sites; tolerates ±5° crossing slope and ±10° longitudinal slope during laying, adapting to rough terrain like marshlands or hilly gaps.
Low Manpower Demand: Only requires 4 operators to complete the entire erection process—reducing personnel reliance for field operations, especially in resource-limited scenarios.
Technical Specification (HZ68 Heavy Tactical Bridge)
Bridge Type: HZ68 Heavy Tactical Integrated Bridging System
Loading Capacity: MLC80 (military load classification standard)
Trackway Width: 4m (main passage width for vehicles)
Overall Width: 4.5m (including safety margins)
Length of Single Span: 13.6m (modular assembly for multi-span extensions)
Trestle Adjustment Range: 2.6m - 6m (adapts to uneven terrain on both sides of obstacles)
: Single Span 12min; Whole Set 60min (from arrival to bridge readiness)
Number of Operators: 4 (covers chassis operation, bridge laying, and safety inspection)
Slope Tolerance: Allowable Crossing Slope ±5°; Allowable Longitudinal Slope ±10°
Max Speed (Chassis): 90km/h (for rapid deployment to mission sites)
Special Function: Dozer Blade (Available) (integrated terrain leveling)
Application Scenarios
Military Tactical Maneuvers: Supports armored units, artillery brigades, and troop convoys crossing small/medium rivers or dry trenches during field operations—fast erection minimizes exposure to tactical risks, while MLC80 load capacity handles main battle tanks.
Marshland Emergency Access: The cross-country chassis and dozer blade enable deployment in marshy areas (e.g., wetland disaster zones, remote military outposts)—levels soft ground and lays stable bridges for rescue/ supply vehicles.
Post-Disaster Gap Crossing: Rapidly restores passage over dry gaps or small rivers damaged by earthquakes, floods, or landslides—supports heavy rescue machinery (e.g., excavators, cranes) and relief convoys.
Remote Military Outpost Supply: Transports heavy equipment and daily supplies to remote outposts with rough terrain—cross-country chassis handles unpaved roads, while fast erection avoids long waiting times for supply convoys.
Support & Service
Military-Standard Customization: Offers modifications for specific tactical needs, such as cold-region anti-freeze components, desert dust-proofing, or NATO-standard interface adaptations.
Tactical Operation Training: Provides on-site training for operators, including cross-country chassis control, dozer blade terrain leveling, fast erection under pressure, and emergency retrieval.
Field Maintenance Support: Supplies portable maintenance kits (for chassis, hydraulic systems, and dozer blades) and dispatches technical teams for on-site repairs in remote or harsh environments.
Military Compliance Certification: Delivers MLC80 load test reports, cross-country performance data, and tactical scenario validation documents to meet military procurement standards.
