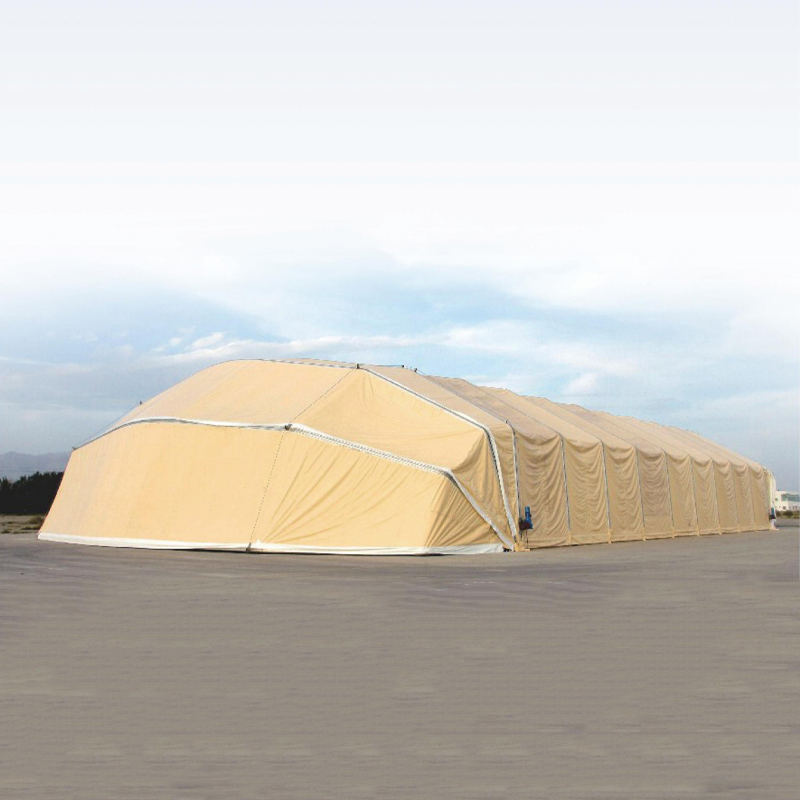

HZ Fast Assembled Aircraft Hangar

Core Advantages

• Full Modular Design: All components follow a unified modular standard (5m modular unit length across all models), enabling flexible length extension by adding units. This adaptability means no custom manufacturing is needed to fit different aircraft sizes—for example, the HZ12 can be extended from its standard length to accommodate larger drones, while the HZ21 can grow to store multiple large aircraft.
• Containerized Transport: Each model is designed to fit into standard shipping containers, simplifying long-distance transport via trucks, ships, or cargo planes. Specifically, one set of HZ12 requires 4 containers, HZ16 needs 6 containers, and HZ21 uses 8 containers—ensuring fast delivery to remote or warzone locations with limited infrastructure.
• Rapid Deployment: Compared to fixed concrete hangars, it achieves drastically faster erection: HZ12 takes just 8h, HZ16 completes in 12h, and HZ21 finishes in 16h. This speed is critical for urgent scenarios like wartime field airfield setup or post-disaster temporary aircraft storage, where protecting air assets quickly is essential.
• Consistent Low Manpower: Regardless of model, all hangars require only 16 operators for full assembly. This consistency balances operational efficiency and personnel allocation, making it suitable for military units or emergency teams that often work with limited on-site labor.
• Multi-Asset Compatibility: The three-model series covers diverse storage needs with targeted dimensions: HZ12 (12m span) is for small-to-medium drones and light equipment; HZ16 (16m span) accommodates light military aircraft and medium drones; HZ21 (21m span) stores large military planes or entire drone fleets—ensuring a match for nearly all common military air assets.

Technical Specification (HZ Fast Assembled Aircraft Hangar)

1. HZ12 Fast Assembled Aircraft Hangar

• Span: 12m
• Standard Length: 16m (extendable via 5m modular units)
• Modular Unit Length: 5m
• Height: 5m
• Total Weight: 28t
• Erection Time: 8h
• Containers per Set: 4 (standard shipping container size)
• Number of Operators: 16
• Primary Application: Storage and maintenance of small-to-medium drones, as well as light sensitive equipment.

2. HZ16 Fast Assembled Aircraft Hangar

• Span: 16m
• Standard Length: 20m (extendable via 5m modular units)
• Modular Unit Length: 5m
• Height: 5.8m
• Total Weight: 42t
• Erection Time: 12h
• Containers per Set: 6 (standard shipping container size)
• Number of Operators: 16
• Primary Application: Storage and maintenance of light military aircraft (e.g., light attack planes) and medium-sized drones.

3. HZ21 Fast Assembled Aircraft Hangar

• Span: 21m
• Standard Length: 25m (extendable via 5m modular units)
• Modular Unit Length: 5m
• Height: 5.8m
• Total Weight: 56t
• Erection Time: 16h
• Containers per Set: 8 (standard shipping container size)
• Number of Operators: 16
• Primary Application: Storage and maintenance of large military aircraft (e.g., transport planes, fighter jets) and entire fleets of medium-to-large drones.

Application Scenarios

• Wartime Field Airfield Support: Deploys quickly to frontline or temporary airfields to protect critical air assets. The HZ21 (21m span) houses large military aircraft like transport planes or fighter jets, while the HZ16 stores light attack aircraft—all completing erection in 8–16h to avoid prolonged exposure to enemy fire or harsh weather. The HZ12, meanwhile, supports drone reconnaissance fleets, ensuring real-time battlefield intelligence collection.
• Remote Military Outpost Storage: Ideal for isolated outposts (e.g., desert, mountain, or island bases) where building fixed hangars is impractical. Its containerized transport (4–8 containers per set) simplifies delivery to areas with poor road or port infrastructure, and the 5m modular units let the hangar grow as the outpost’s drone/aircraft fleet expands.
• Drone Fleet Maintenance: Provides dedicated, protected space for medium-to-large drone fleets (e.g., surveillance, combat, or logistics drones). The HZ12 (12m span) fits 3–5 medium drones, with its 5m height allowing easy access for battery replacement and sensor maintenance; the HZ16 can accommodate larger drone models, supporting more complex repair work.
• Emergency Airfield Recovery: Replaces destroyed fixed hangars after airfield damage from bombing, earthquakes, or storms. The HZ16 and HZ21 enable rapid resumption of aircraft operations—their containerized design means they can be airlifted via cargo planes to disaster zones, and 12–16h erection gets air assets back in protected storage fast.

Support & Service

• Model-Specific Customization: Offers targeted upgrades for each model to fit unique operational needs. For the HZ12, this includes integration of drone charging stations and lightweight insulation for desert use; for HZ16 and HZ21, additions like aircraft maintenance platforms, climate control systems (to protect sensitive avionics), or anti-corrosion coatings (for coastal outposts) are available. All models can also be fitted with cold-proof insulation for high-altitude bases.
• 16-Person Team Training: Provides on-site training for assembly teams, focusing on practical skills like modular component alignment (to ensure structural stability), efficient container unloading (to cut prep time), optimized erection sequences (to meet tight 8–16h timelines), and emergency disassembly—critical for scenarios like impending enemy attacks or severe weather warnings.
• Modular Spare Parts: Supplies dedicated, model-matched spare parts, including compact panels for the HZ12, large-span support structures for the HZ21, and universal 5m modular units that work across all models. These parts are packaged in compact kits that fit into standard containers, making them easy to ship to remote outposts for maintenance.
• Military Compliance Certification: Delivers comprehensive documentation to meet military procurement standards, including structural stability reports (validating resistance to high winds and heavy rain), load-bearing tests (ensuring safe aircraft movement inside), and container transport compatibility certificates—plus security certifications for storing sensitive military equipment.
