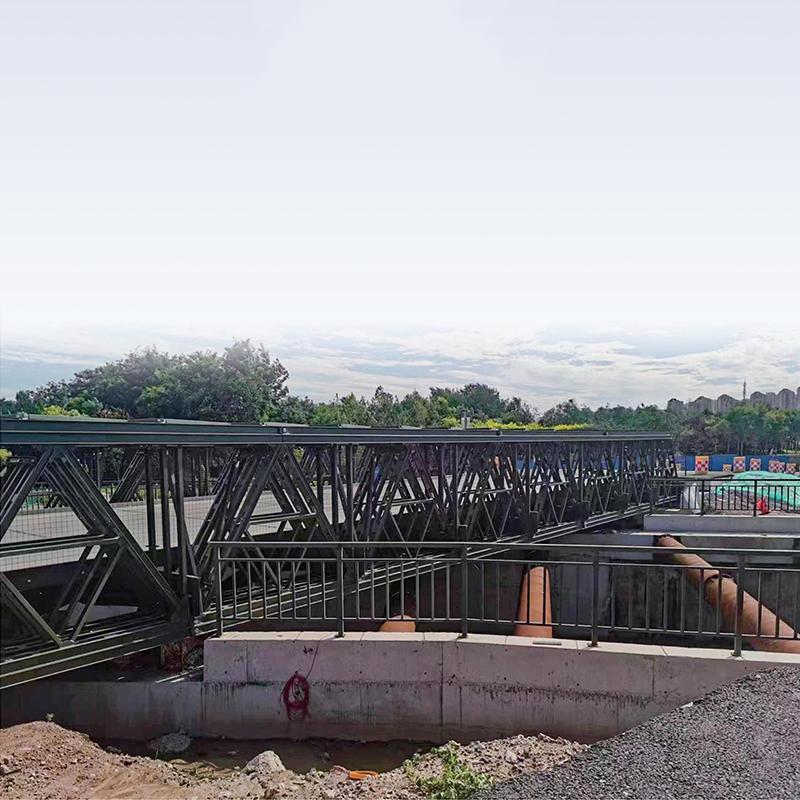

The CB300 Compact Panel Bridge is a globally recognized standard modular bridge system, specializing in civil-military dual-use scenarios—it efficiently constructs temporary or semi-permanent crossings to ensure unobstructed passage for artillery, heavy vehicles, and civilian traffic, solving obstacle-overcoming challenges worldwide.
The CB300 Compact Panel Bridge is a globally recognized standard modular bridge system, designed for both civil and military applications. It excels at constructing temporary or semi-permanent crossings to ensure unobstructed passage for artillery, heavy vehicles, and civilian traffic, making it a reliable choice for obstacle-overcoming scenarios worldwide.
Core Advantages
Civil-Military Dual-Use Compatibility: Tailored to meet both civilian infrastructure needs and military tactical requirements—supports heavy-duty equipment (artillery, armored vehicles) while adapting to civilian traffic flow (trucks, passenger cars).
Wide Span Flexibility: Covers a designed span range of 6m to 72m, enabling deployment in diverse scenarios from small river crossings to large gap obstacles.
Easy Transport & Rapid Operation: Features a simplified structure with lightweight yet durable components, facilitating convenient transportation via trucks or military vehicles; on-site launching and disassembling can be completed quickly by a small team, reducing operation time.
Reliable Load-Bearing Performance: Complies with HL93, HA, HB load standards, with a maximum tacked load of 60t, ensuring stable support for heavy vehicles and equipment during long-term use.
Technical Specification (CB300)
Bridge Type: CB300 Compact Panel Bridge
Designed Span: 6m to 72m (flexible assembly based on on-site gap requirements)
: HL93, HA, HB; Maximum Tacked Load 60t
Panel Dimension (Length × Width): 2.28m × 3m (standard panel size for easy assembly)
Carriageway Width: Single Lane 4.2m; Double Lane 7.35m (meets dual-lane traffic demand for civilian and military use)
Deck Type: Steel Deck (high-strength, anti-slip surface, resistant to wear and corrosion, suitable for harsh environments)
Application Scenarios
Military Operations: Establishes rapid crossings for troop and equipment movement in field environments, supporting artillery deployment and armored vehicle advancement over trenches, rivers, or damaged road sections.
Civil Emergency Rescue: Builds temporary bridges quickly after natural disasters (floods, earthquakes) to connect isolated areas, enabling the transport of rescue teams, medical supplies, and relief materials.
Infrastructure Construction: Serves as a temporary crossing for highway, railway, or water conservancy projects—avoids long detours for construction vehicles and maintains local traffic connectivity during project execution.
Heavy Equipment Transport: Provides stable semi-permanent crossings for mining areas, industrial parks, or remote construction sites, supporting the passage of large excavators, loaders, and transport trucks.
Support & Service
Customized Adaptation: Offers tailored adjustments to span combinations and load configurations based on specific project needs (e.g., harsh weather resistance, special terrain adaptation).
On-Site Technical Support: Sends professional technical teams to provide on-site guidance, including bridge erection training, safety operation demonstrations, and post-installation inspection.
Spare Parts Supply: Maintains a long-term inventory of core components (panels, connectors, fasteners) to ensure timely replacement and minimize downtime for bridge maintenance.
Certification Documentation: Provides complete test reports (load-bearing, durability, corrosion resistance) and compliance certificates to meet customer quality verification and project approval requirements.
