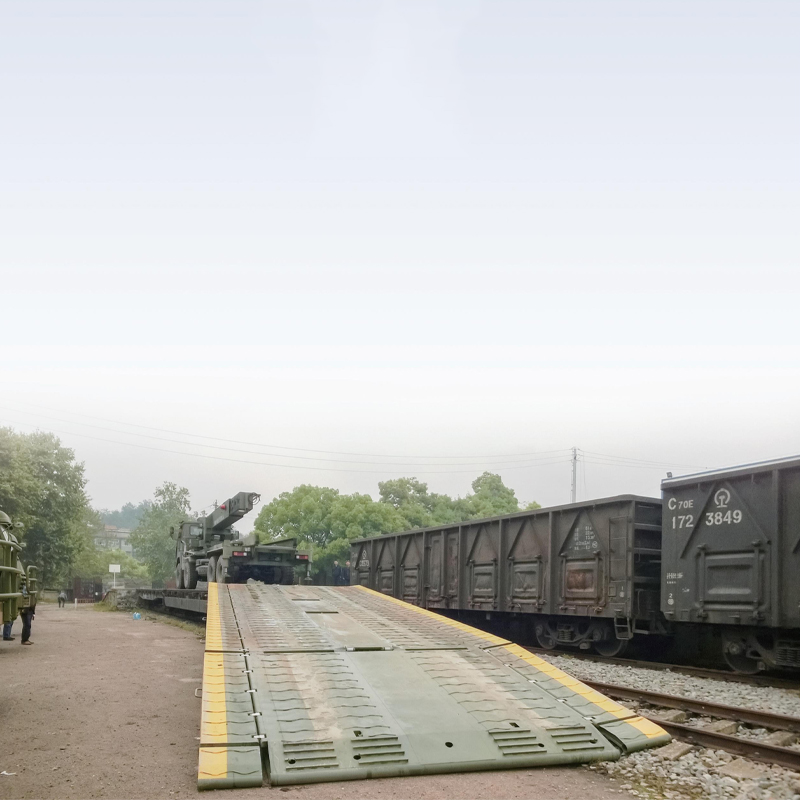

HZ15 Railway Platform Vehicle

Core Advantages: Speed, Efficiency, and Independence

1. Ultra-Fast Deployment & Retrieval (6 Minutes Each)

In emergency scenarios, speed is non-negotiable—and the HZ15 delivers. It completes full erection (from a mobile state to a usable platform) in just 6 minutes, and retrieval (dismantling for relocation) in the same timeframe. This is a game-changer compared to traditional temporary platforms, which can take hours to set up. For example, if a fixed railway platform is destroyed by a flood, the HZ15 can be on-site and operational before a rescue team’s heavy machinery arrives, cutting equipment transfer delays by over 90%.

2. Lean 2-Person Operation

Unlike larger railway platform systems that require 6+ operators, the HZ15 is designed for minimal manpower. Just 2 personnel—a driver and an operator—can handle every step: positioning the vehicle, erecting the platform, monitoring load safety, and retrieving the system. This reduces labor demands for field teams, which is critical in disaster response (where personnel are often stretched thin) or military operations (where minimizing exposure to risk is key).

3. 60t Heavy-Load Capacity (MLC-Grade Performance)

Despite its compact size (30t total weight), the HZ15 punches above its weight with a 60t tracked load and 17t axle load. This means it can safely support heavy assets like rail grinders, military armored transport vehicles, large generators, or disaster-relief excavators—equipment that would otherwise be stranded without a fixed platform. The 4m-wide, 15m-long platform provides ample space for single-way heavy vehicle passage or side-by-side loading of smaller gear.

4. Fully Self-Sufficient Operation

The HZ15’s "self-erection, self-retrieval, self-movement" triad eliminates dependency on external tools. Its integrated hydraulic system powers platform deployment without cranes; its mobile chassis lets it relocate independently (no tow trucks needed); and its built-in safety locks secure the platform during use—all without relying on on-site infrastructure. This independence makes it ideal for remote areas (e.g., mountainous railway construction sites) or post-disaster zones (where power and heavy machinery are scarce).

Technical Specifications: Built for Field Reliability

Product Type: HZ15 Field Platform Launching Vehicle (Railway-Specific)

Total Weight: 30t (optimized for balance between mobility and load-bearing strength)

Personnel Requirement: 2 Operators (covers all functions: driving, erection, retrieval, safety checks)

Platform Dimensions:

Length: 15m (supports long equipment like rail repair trucks or military trailers)

Width: 4m (accommodates standard heavy vehicle widths with safety margins)

Load Capacity:

Tracked Load: 60t (supports MLC-equivalent heavy equipment)

Axle Load: 17t (compatible with most industrial and military vehicle axles)

Operation Times:

Erection Time: 6 minutes (from vehicle stop to platform readiness)

Retrieval Time: 6 minutes (from platform disassembly to mobile state)

Key Features: Self-erection hydraulic system, self-locking platform panels, rugged chassis for field terrain

Application Scenarios: Where the HZ15 Delivers Critical Value

1. Post-Disaster Railway Recovery

After earthquakes, floods, or landslides, fixed railway platforms are often among the first infrastructure to fail. The HZ15 can be deployed within hours to create temporary loading/unloading points, enabling heavy rescue machinery (e.g., cranes to clear debris) and relief supplies (food, medical gear) to reach affected areas via railway. Its 6-minute setup means teams don’t waste time waiting for platform repairs.

2. Remote Railway Construction

Building railways in mountainous, desert, or forested regions often requires heavy equipment (e.g., track layers, rock drills) to be transported via rail—but fixed platforms are rarely built in advance. The HZ15 acts as a mobile support hub: it travels with construction convoys, sets up quickly at remote rail stops, and lets teams unload equipment directly onto work sites. Its 30t total weight ensures it can navigate rough access roads to reach these locations.

3. Military Field Railway Operations

Military units rely on railways to move armored vehicles, ammunition, and command centers—but fixed platforms in combat zones are vulnerable to attack. The HZ15 provides a disposable, fast-redeployable alternative: it can be set up to unload equipment, then retrieved and moved to a new location before enemy forces can target it. Its 2-person crew also reduces the number of soldiers exposed to battlefield risks.

4. Temporary Railway Maintenance Stops

Railway maintenance teams often need to work on sections far from permanent stations. The HZ15 serves as a mobile maintenance platform: it parks alongside the rail line, erects in 6 minutes, and lets teams unload tools, spare parts, and small machinery (e.g., rail grinders) directly onto the tracks. After maintenance is complete, it retrieves quickly and moves to the next stop.

Support & Service: Keeping the HZ15 Mission-Ready

Custom Terrain Upgrades: We offer modifications to suit extreme field conditions—such as anti-corrosion coatings for coastal railway lines, cold-weather hydraulic fluids for Arctic operations, or dust-proof seals for desert deployments. These upgrades ensure the HZ15 performs reliably in your specific environment.

2-Person Crew Training: Our on-site training focuses on practical, scenario-based skills: fast erection under time pressure, load safety checks for 60t equipment, troubleshooting hydraulic issues, and navigating the HZ15’s chassis on rough access roads.

Compact Spare Parts Kits: We supply lightweight, portable spare parts kits (including hydraulic hoses, platform locking pins, and chassis filters) that fit in the HZ15’s on-board storage. This lets teams make repairs in remote areas without waiting for logistics support.

Compliance Documentation: We provide full certification to meet railway and military standards, including 60t load test reports, safety validation for 2-person operation, and field performance data—critical for procurement and operational planning.
