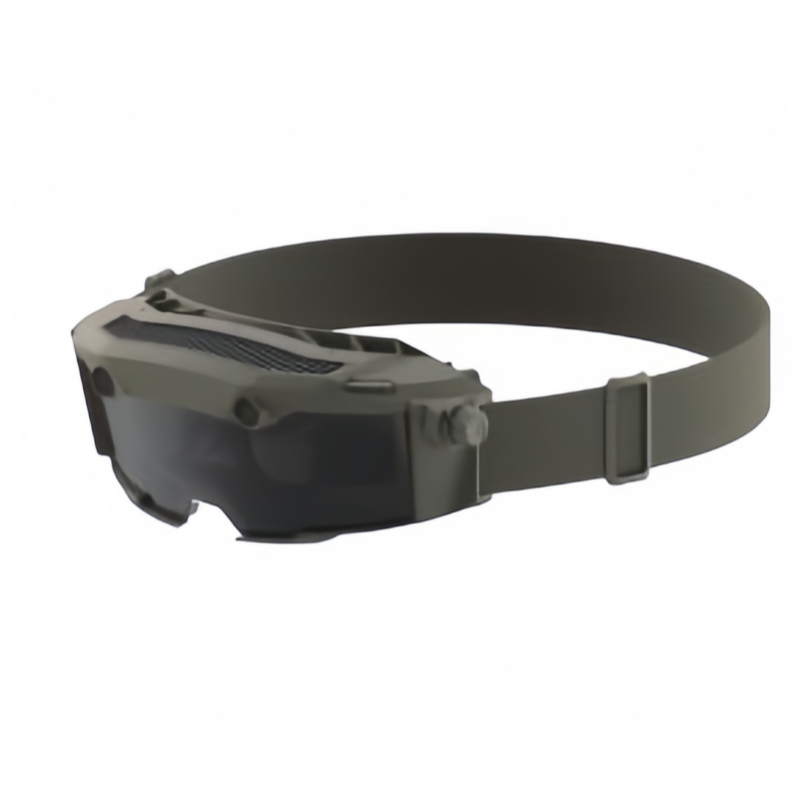

The QR ProH is a next-generation individual soldier smart display system designed for modern battlefields. Integrating Augmented Reality (AR) near-eye display, infrared reconnaissance, situational awareness, and tactical communications, this lightweight, low-power, and flexibly wearable device is compatible with military helmets and applicable to combat operations, training exercises, and maintenance support across all branches of the armed forces.
With domestically produced core components, the QR ProH supports full-unit customization and secondary software development to meet diverse mission requirements.
Leveraging Augmented Reality technology, tactical information is projected directly into the user's field of view, enabling real-time data sharing and collaborative operations without distracting from the environment.

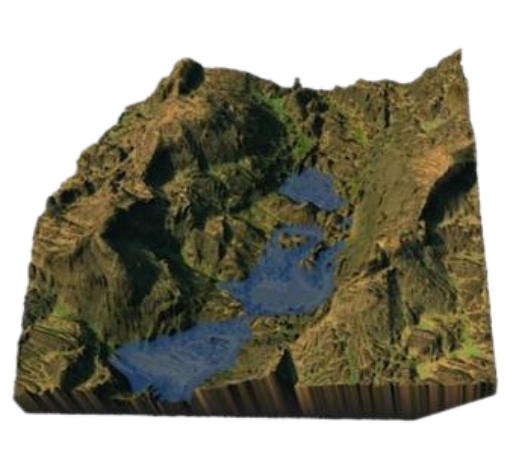

Displays real-time tactical maps with dynamic updates, ensuring soldiers always have the latest battlefield intelligence for rapid decision-making.
Supports live video sharing with UAVs, UGVs, and other platforms. Sensor-captured battlefield data can be transmitted back to command or shared among units, significantly enhancing manned-unmanned teaming capabilities.
Receives and displays multi-source intelligence data in real time. Features include voice-to-text conversion, position reporting, and image transmission — keeping hands free and eyes on the mission.
| Parameter | Specification |
|---|---|
| AR Field of View | ≥45° |
| Max Display Brightness | 800 nits |
| AR Resolution | 1920×1080@60Hz |
| Infrared Resolution | 640×512@50Hz |
| Visible Light Resolution | 1920×1080@30Hz |
| AI Computing Power | ≥8 TOPS |
| Video Streams | ≥4 channels, H.264/H.265 codec support |
| Infrared Detection Range | >150 meters |
| HUD Weight | ≤365g |
| Total Power Consumption | ≤5W |
| Ingress Protection | IP54 (HUD) / IP65 (Battery Pack, Remote) |
| Operating Temperature | -20℃ ~ +50℃ |
| Battery Life | ≥8 hours |

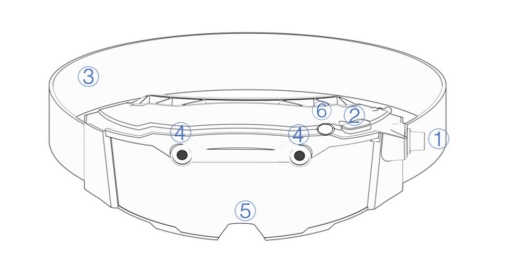

Head-Mounted Display: Binocular visible-light camera, infrared module, protective visor, rotary selector knob, return button, elastic straps

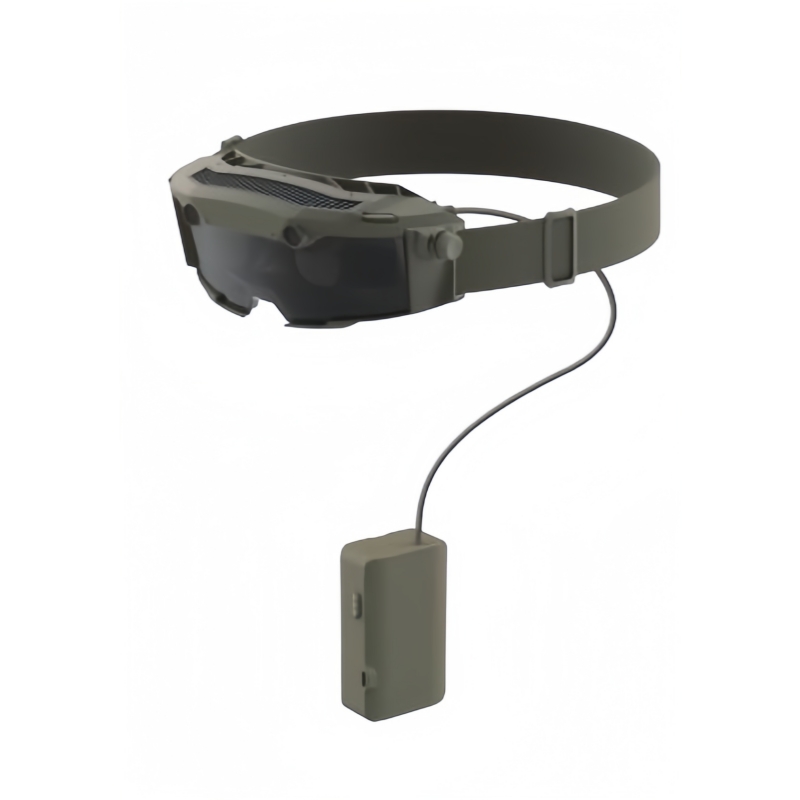

Battery Pack: Supports 18650 replaceable batteries, Type-C data interface
Remote Controller (Optional): Directional pad, confirm button, voice input, pairing & brightness control
Flexible mounting options — can be worn on chest, waist, or back to suit various tactical vest configurations.
Rotary Selector Knob: 360° endless rotation to switch between infrared, visible light, map, streaming sources, and more
Photo/Video Capture: One-touch operation; supports desktop or camera recording
Standby Mode: Short press power button for low-power standby; quick wake-up
Remote Pairing: Supports multi-device binding with visual ID confirmation
Main interface displays battery status, system time, digital compass, image mode, and remote ID
Quick-access menu for face recognition, recording, auxiliary window, tactical messaging, and mini-map
Map update and plotting functions: target marking (personnel, fortifications, vehicles), hide/show, zoom, rotate, tactical grid overlay
System settings: Wi-Fi configuration, network time sync, brightness adjustment, file management, gallery access
Data Export: Connect via Type-C to PC for direct access to image and video folders
Firmware Update: ADB-based APK installation for easy upgrades
Routine Care: Clean lenses with microfiber cloth; regularly check battery and connections
Storage Recommendation: Recharge batteries every two months during long-term storage to maintain performance
Batteries and main unit must be shipped separately in compliance with hazardous goods regulations
Use original packaging or anti-static foam cushioning to prevent damage during transit
Streaming Issues: Check Wi-Fi signal strength or resolution settings
Message Reception Failure: Verify network connectivity and IP configuration
Map Format Requirements: Supports jpg/png/obj; mapConfig file required for configuration
Ad-Hoc Network Setup: USB connection and config file modification supported
QR ProH — Empowering Every Soldier as a Battlefield Information Node.
