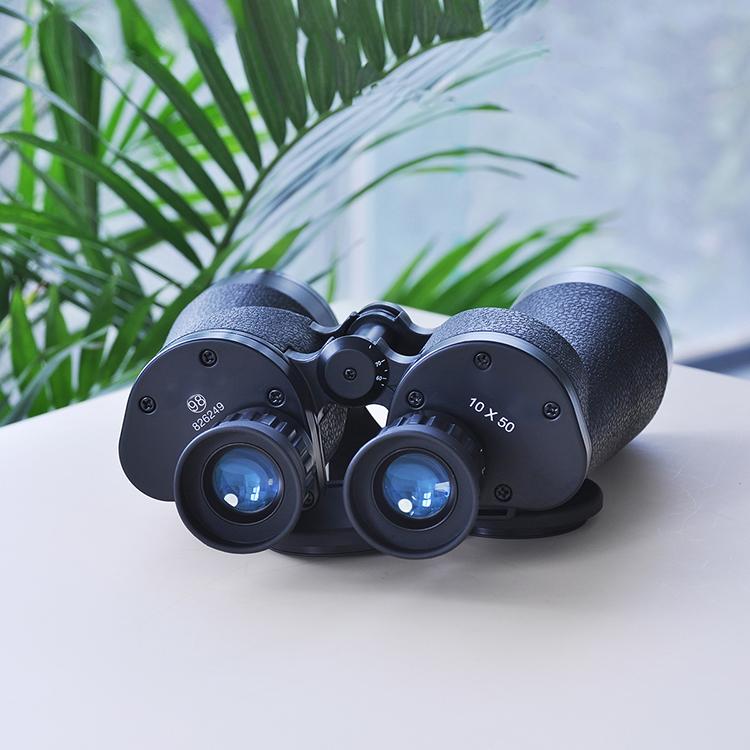

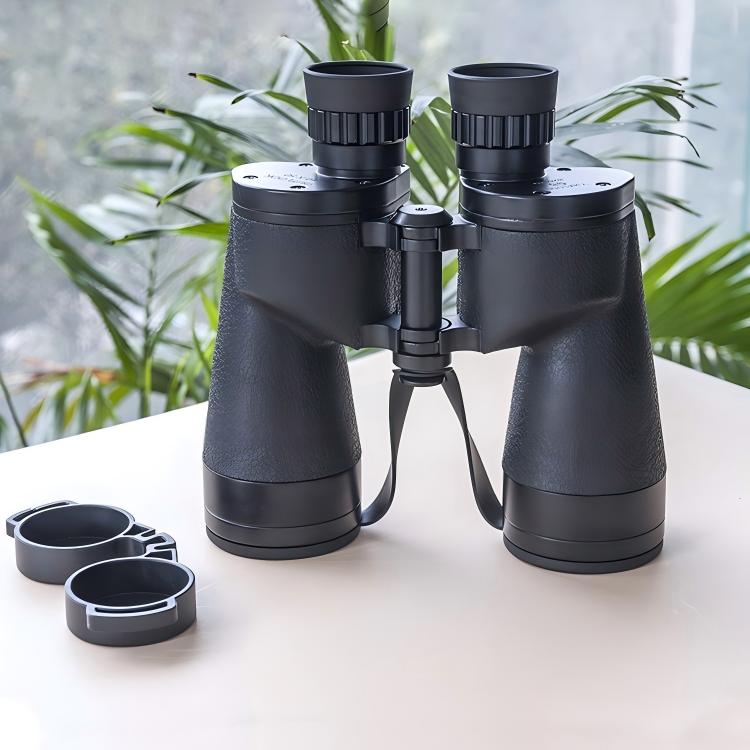

CXXMZRR0730A 10x50 Military Binoculars

China Xinxing Xiamen has launched the CXXMZRR0730A 10x50 Military Binoculars :

Standard Configuration:

  • BAK4 prisms, fully multi-coated broadband green film.

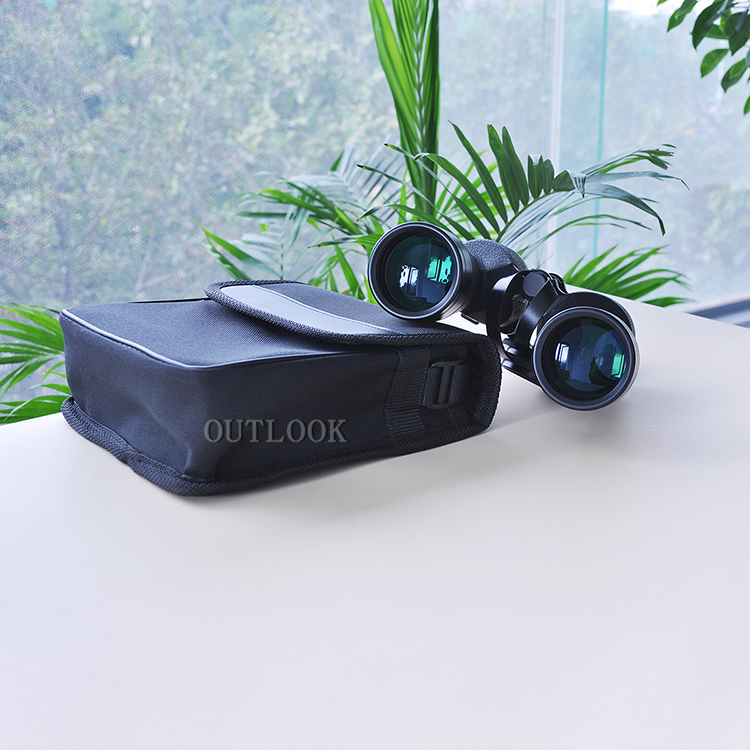

  • PQ600D black Oxford cloth soft case or matching leather box, suede-like flannel cloth, corrugated color box, regular instruction manual, certificate of conformity, warranty card, plastic bag, WPQ strap.

Features:

★ Equipped with BAK4 prisms for sharp and clear imaging. The 15x high magnification delivers clearer and brighter images, making buildings 1,000 meters away appear as if they are right in front of you—similar to the view when looking up from the bottom of a building. Excellent optical performance.
★ High-quality rubber coating offers a comfortable grip with fine craftsmanship. Its superior waterproofing and resistance to high/low temperatures fully meet the needs for field use or harsh environments.
★ 18mm long exit pupil distance ensures convenient and comfortable viewing.
★ American-style suspended prism design ensures stable and reliable imaging.
★ Full metal structure for sturdiness and durability.
★ Shockproof and vibration-resistant.
Product Parameters

Item Details
Inspection No. CXXMZRR0730A
Specification 10X50
Brand OUTLOOK Yuanjin
Standard GB
Magnification 10.0X (with international CNAS test report)
Objective Lens Diameter 50mm 50mm
Field of View 108m/1000m 315FT/1000YDS
Exit Pupil Distance (mm) 20
Exit Pupil Diameter (mm) 5.3MM (with international CNAS test report)
Visual Field 6° (Left 6.4°, Right 6.5°) (with international CNAS test report)
  Observation and Prediction
Minimum Focusing Distance (m) 7
Relative Brightness 25
Twilight Factor 22.8
Resolution 5.54'' (with international CNAS test report)
Diopter Compensation Adjustment -0.4m- (with international CNAS test report)
Visual Diopter Adjustment Range (5°+5°)m (with international CNAS test report)
Image Tilt +5.0 (with international CNAS test report)
Relative Resolution 0.0 (with international CNAS test report)
Prism System Porro
Interpupillary Distance Adjustable Range 52 - 76mm
Optical System ZE1G + 4E3G
Coating 420 - 580nm, R < 0.5% (AVG); 420 - 680nm, R < 1.0% (ABS). Military standard 550nm (MG2); Full - bandwidth multi - coating, Green film + Anti - reflection blue film
Coating Specification (Coating Spec.) 550nm (MG2)
Visual Image Protection Cover yes
Material Rubber (NBR + PVC) (with index plate)
Range Finding Available (BAK4)
Prism Material BAK4
Focusing System Binocular fine adjustment
Eye Cup Type Rubber foldable
Mildew - proof Yes
Waterproof 10 in one phase
Glasses Approx. 1kg
Net Weight (g) 189X69X177



Product Details
High Quality Easy to Use

Applications
Industrial Handling Military Handling




FAQ

1.Binoculars Price Range
(1) Entry-level civilian: ~¥50-300, not for military use.
(2) Mid-range: ~¥800-3,000, rarely used in non-frontline military auxiliaries.
(3) High-end professional: ~¥5,000-20,000, usable for basic military field reconnaissance.
(4) Top military-grade: Over ¥30,000, with high durability, excellent optics for extreme battlefields.

2.Magnification Selection

(1) 7-10x: Stable, wide field of view, ideal for military patrols.
(2) 8-12x: Balances magnification and stability, used in military reconnaissance.
(3) 15-25x: For specific military reconnaissance with tripods to avoid shaking.

3.Binocular Coatings

Coatings reduce reflection, boost light transmittance, and enhance clarity. Military binoculars rely on FMC (best) for clear viewing in complex battlefield light; MC meets basic military needs.

4.Waterproof Ratings

(1) Daily waterproof: Resists light splashes, not for military use.
(2) Waterproof: Withstands brief 1m submersion, usable in rainy battlefields.
(3) Nitrogen-filled: Fully waterproof/anti-fog, essential for military use in harsh environments.

5.Suitable Scenarios

(1) Outdoor activities (similar to military training/patrol/reconnaissance).
(2) Entertainment: Unrelated to military.
(3) Professional uses: Navigation/security monitoring aid military maritime operations/base security.
