Increase loading efficiency while reducing labor costs with an intelligent rail-guided truck loading system. Designed for palletized and non-palletized cargo, this automated gantry solution enables safe, fast, and accurate loading of flatbed and high-side trucks for modern logistics and manufacturing operations.
Applications
Bulk Materials • Warehousing • Logistics • Chemical Industry • Building Materials • Agriculture • Manufacturing

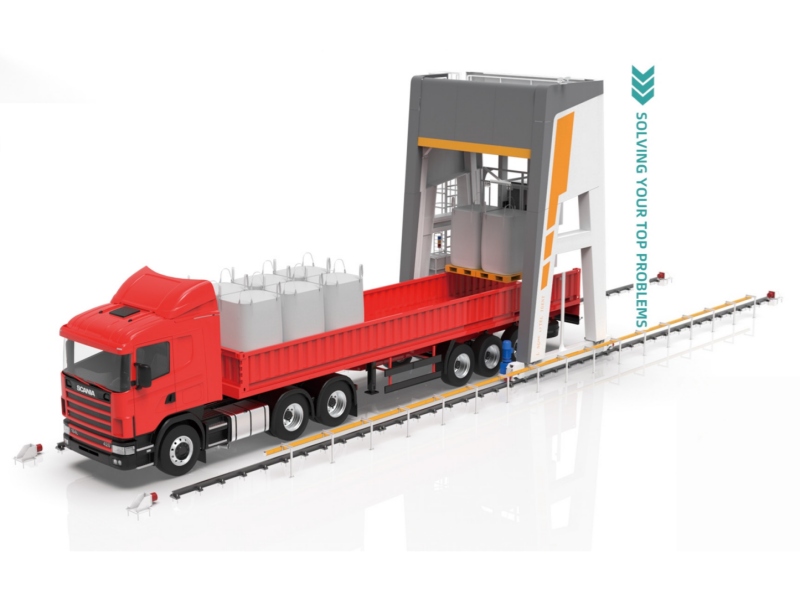

The Intelligent Rail-Guided Truck Loading System is a fully automated gantry-based loading solution developed for facilities handling large volumes of packaged cargo. Running on high-strength guide rails installed alongside the truck, the gantry automatically travels along the vehicle and transfers goods into position with high precision.
Unlike traditional forklift loading, the system minimizes manual intervention while providing stable, repeatable loading performance for different truck sizes and cargo configurations.
The modular design allows integration with warehouse conveyor lines, palletizing systems, robotic handling equipment, and warehouse management platforms.

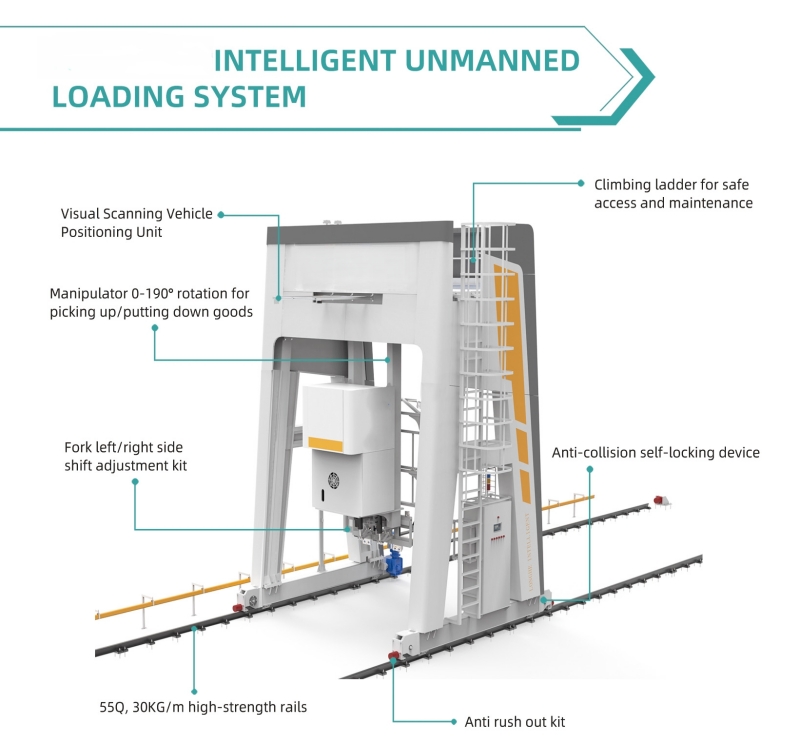

The gantry travels smoothly on dual high-strength guide rails positioned along both sides of the truck, ensuring accurate loading throughout the entire vehicle length.
An integrated visual positioning system automatically detects truck location before loading begins, reducing positioning errors and improving operational efficiency.
The robotic handling unit rotates up to 180 degrees, enabling flexible pick-and-place operations for different cargo orientations.
Supports automatic loading of bags, cartons, barrels, containers, palletized goods, and flexible bulk packaging.
The intelligent fork system automatically adjusts its width to accommodate different cargo dimensions without manual intervention.
Equipped with ultrasonic detection, obstacle recognition, anti-collision protection, emergency stop systems, and automatic fault diagnosis.
Reduce vehicle waiting time and improve loading throughput for high-volume shipping operations.
Replace multiple forklift operators with a single automated loading system.
Load goods with or without pallets, including bags, cartons, drums, flexible intermediate bulk containers (FIBCs), and stacked materials.
The rail-guided design occupies minimal floor space while maintaining full loading functionality.
The intelligent control system ensures consistent loading quality and minimizes cargo shifting during transportation.
Easily integrate with automatic palletizers, conveyors, warehouse automation systems, and AGVs.

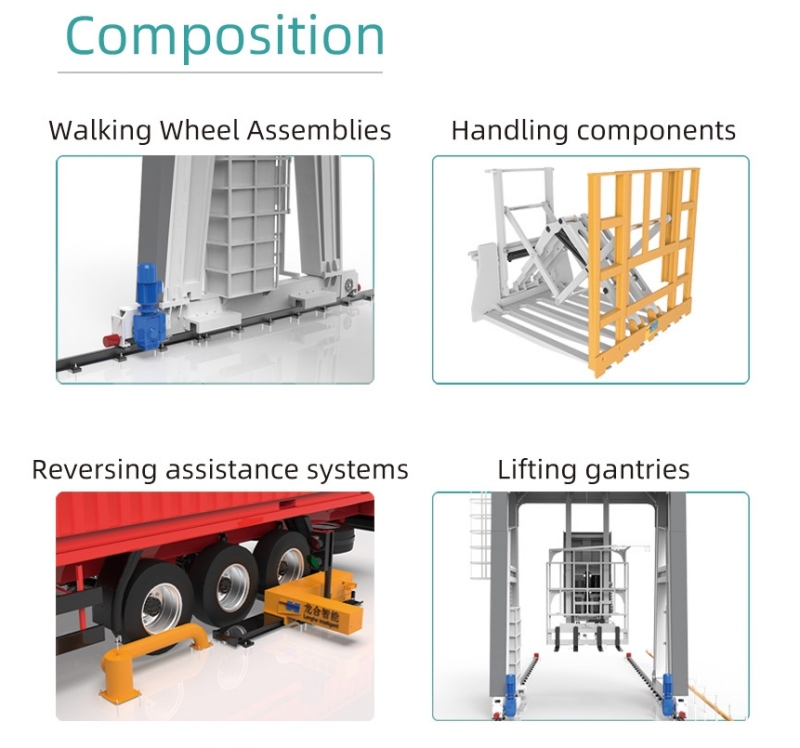

The complete loading system consists of multiple intelligent modules working together.
Heavy-duty rail assemblies provide smooth and precise longitudinal movement.
A rigid steel frame delivers high stability during continuous industrial operation.
Automatically handles cargo with programmable movement and rotation.
Automatically adapts to different cargo widths.
Accurately locates truck positions before each loading cycle.
Includes ultrasonic sensors, collision prevention devices, emergency stop controls, and abnormal operation alarms.
The truck enters the loading station and is positioned automatically.
The gantry travels to the designated loading position.
The manipulator picks cargo from the conveyor or storage area and places it into the truck according to the loading program.
The system continues automatic loading until the truck is fully loaded.
Designed for multiple packaging formats.
This solution is widely used in industries requiring repetitive truck loading operations.
Automatic loading of bagged chemicals, resin, fertilizer, and powders.
Loading flour, sugar, rice, grain, feed, and packaged food products.
Suitable for cement bags, dry mortar, additives, and construction materials.
Efficient loading of seeds, fertilizer, animal feed, and agricultural products.
Finished product logistics and outbound warehouse operations.
High-frequency truck loading for distribution hubs and regional warehouses.
| Item | Specification |
|---|---|
| Travel Speed | 0.75 m/s |
| Fork Lift Speed | 0.13 m/s |
| Maximum Payload | 3,100 kg |
| Travel Mode | Rail Guided |
| Positioning | Vision Positioning |
| Safety System | Ultrasonic Detection + Collision Protection |
| Truck Types | Flatbed Trucks, High-Side Trucks, Open Top Vehicles |
| Traditional Forklift Loading | Rail-Guided Loading System |
|---|---|
| Labor intensive | Fully automated |
| Multiple operators | Single operator supervision |
| Slow loading speed | Continuous automatic loading |
| Higher cargo damage | Accurate placement |
| Higher accident risk | Intelligent safety protection |
| Inconsistent efficiency | Stable production output |
Every logistics project has different operational requirements. Our engineering team provides customized solutions based on:
Complete turnkey solutions are available from design and manufacturing to installation and commissioning.
Yes. It is specifically designed to handle both palletized and non-palletized cargo, including bags, cartons, barrels, and jumbo bags.
The system is suitable for flatbed trucks, high-side trucks, and other open-loading commercial vehicles.
Yes. The loading system can be integrated with conveyor systems, palletizers, robotic cells, and warehouse automation equipment.
Absolutely. We provide project-specific engineering services to match your warehouse layout, cargo type, and loading capacity.
The system includes vision positioning, ultrasonic inspection, collision protection, emergency stop functions, obstacle detection, and intelligent fault monitoring.
With years of experience in intelligent logistics automation, we deliver reliable truck loading systems that help customers improve productivity, reduce operating costs, and build smarter warehouses.
From concept design and manufacturing to installation and after-sales support, our engineering team provides complete lifecycle service for every project.
Looking for a faster, safer, and more reliable truck loading solution?
Contact our specialists today to receive a customized proposal, technical consultation, and turnkey automation solution tailored to your facility.
