The CXXM400 Unmanned Surface Vehicle (USV) is a compact, high-performance unmanned marine platform designed for professional maritime missions where remote operation, payload flexibility, and extended communication are required.
Available in Standard and Ultra configurations, the CXXM400 combines a 115 HP gasoline outboard engine, aluminum-alloy hull, 350 kg payload capacity, and long-range operating capability. The Ultra version reaches a maximum speed of 45 knots, making it suitable for missions that require rapid deployment across large water areas.
The platform can operate as an individual USV or as part of a coordinated unmanned system involving multiple vessels, relay UAVs, command vehicles, and ground control stations.
The CXXM400 is designed to move quickly between designated operating areas.
The Standard configuration reaches 35 knots, while the Ultra configuration provides a maximum speed of 45 knots. Even with a full payload, the Ultra model can reach approximately 40 knots.
This performance provides greater flexibility for time-sensitive maritime operations.
The platform supports a maximum payload of 350 kg, providing sufficient capacity for a broad range of professional equipment.
Depending on the mission, customers can integrate:
The open configuration allows the USV to be adapted without changing the basic vessel platform.
The CXXM400 has a specified endurance of approximately 100 nautical miles (185 km) when operating at 20 knots.
A 100-liter fuel tank supports extended missions and reduces the need for frequent refueling during normal operations.
Actual range will vary according to speed, payload, weather, water conditions, and operating profile.
The CXXM series is designed for remote operation through a ground control station.
With an antenna installed at approximately 700 m, the system can achieve a line-of-sight communication range of up to 100 km under suitable conditions.
For projects requiring wider coverage, an optional relay UAV can be introduced. With the relay platform operating at approximately 700 m, the communication architecture can extend coverage to around 200 km.
Rather than being limited to one specific application, the CXXM400 serves as a configurable unmanned maritime platform.
Payload and onboard systems can be selected according to project requirements, making the vessel suitable for different combinations of observation, surveying, monitoring, communication, and emergency-response functions.

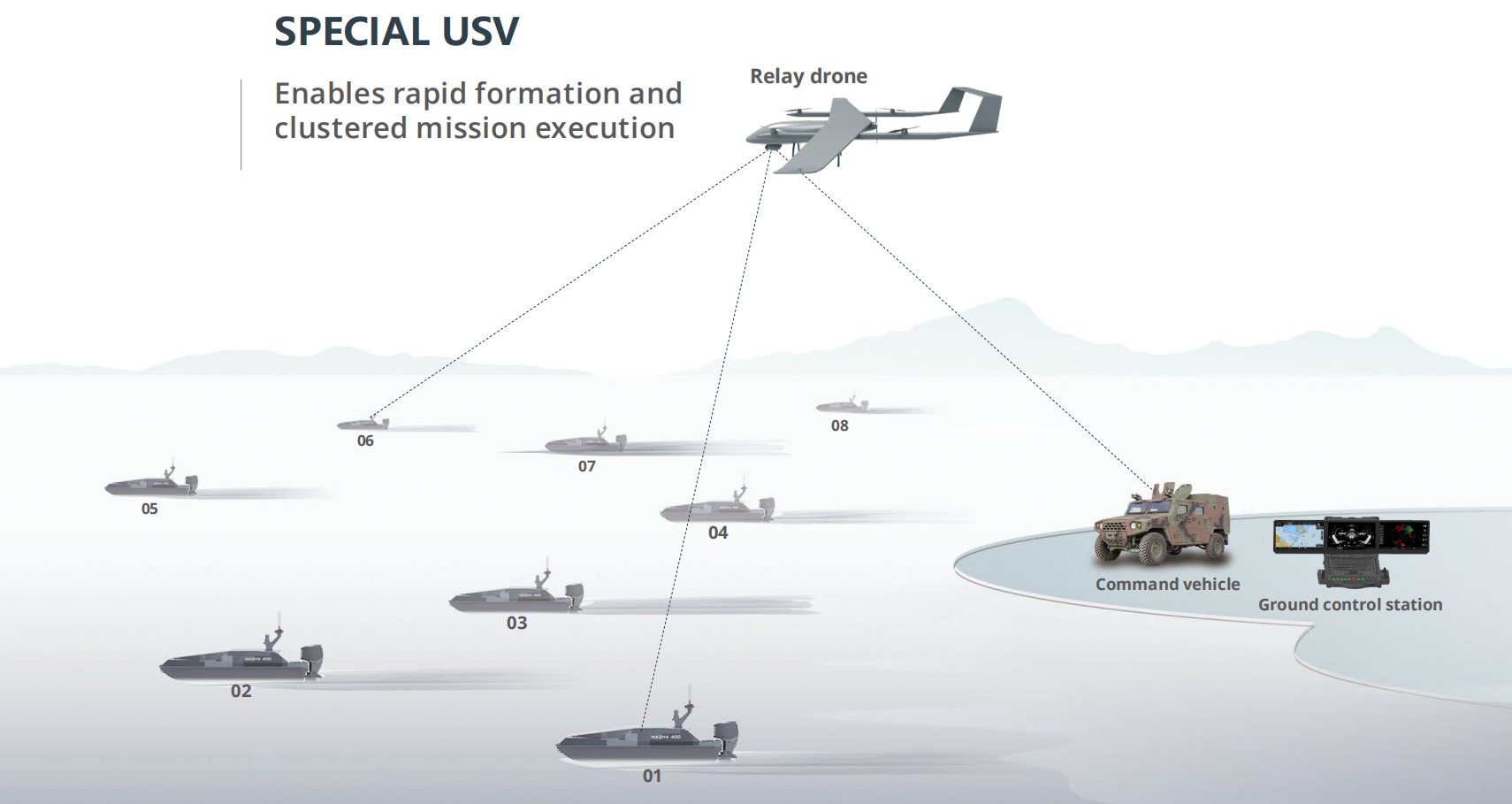

The CXXM series can support coordinated deployment of multiple USVs.
A typical system can combine:
USV Fleet + Relay UAV + Ground Control Station + Command Vehicle
This architecture allows operators to coordinate multiple unmanned platforms and manage maritime missions from a centralized control system.
| Specification | CXXM400 Standard | CXXM400 Ultra |
|---|---|---|
| Length | 4.8 m | 4.8 m |
| Beam | 1.6 m | 1.6 m |
| Payload | 350 kg | 350 kg |
| Lightship Weight | 570 kg | 570 kg |
| Engine | 115 HP Gasoline Outboard | 115 HP Gasoline Outboard |
| Power | 86 kW | 86 kW |
| Maximum Speed | 35 kn | 45 kn |
| Full-Load Speed | 32 kn | 40 kn |
| Endurance | 100 nm | 100 nm |
| Fuel Capacity | 100 L | 100 L |
| Hull Material | Aluminum Alloy | Aluminum Alloy |
The CXXM400 communicates with a ground control station through a wireless control system.
An optional relay UAV can be incorporated when longer communication coverage is required.
Ground Station Antenna Height: approximately 700 m
Standard LOS Range: up to 100 km
Relay Configuration: up to approximately 200 km
Communication performance depends on antenna placement, terrain, weather, electromagnetic conditions, and system configuration.
The CXXM400 can carry optical and sensing payloads for remote observation of designated water areas.
Its payload capacity allows integration of professional survey equipment for waterway and marine data collection.
The high-speed platform can support inspection and monitoring activities around ports, waterways, and coastal infrastructure.
Customized sensors can be installed for water-quality observation and environmental data collection.
Cameras and mission equipment can provide remote situational information during maritime emergency operations.
The unmanned platform can provide remote operational support in situations where deploying crewed vessels may be inefficient or impractical.
Multiple CXXM platforms can be coordinated for broader-area monitoring, surveying, and other professional maritime tasks.
| Item | Specification |
|---|---|
| Product | CXXM400 Unmanned Surface Vehicle |
| Type | Unmanned Surface Vehicle / USV |
| Length | 4.8 m |
| Beam | 1.6 m |
| Maximum Payload | 350 kg |
| Lightship Weight | 570 kg |
| Engine | Gasoline Outboard |
| Engine Power | 115 HP / 86 kW |
| Maximum Speed | 35 kn / 45 kn |
| Full-Load Speed | 32 kn / 40 kn |
| Endurance | 100 nm |
| Fuel Capacity | 100 L |
| Hull Material | Aluminum Alloy |
| Communication | Wireless |
| LOS Communication | Up to 100 km* |
| Extended Communication | Up to 200 km with Relay UAV* |
| Control | Ground Control Station |
| Configuration | Standard / Ultra |
*Range is dependent on antenna height, terrain, environmental conditions, communication configuration, and operating conditions.
The CXXM400 is designed for organizations requiring professional unmanned maritime platforms, including:
The CXXM400 can be configured according to specific project requirements. Customers can discuss payload integration, communication architecture, navigation equipment, control systems, and other mission-specific configurations with the engineering team.
For large-scale projects, the CXXM400 can also be incorporated into a broader USV-UAV-ground control system, providing a coordinated unmanned platform solution.
The CXXM400 is a professional unmanned surface vehicle designed for maritime monitoring, surveying, environmental observation, emergency response, and other remote maritime operations.
The maximum payload capacity is 350 kg for both Standard and Ultra configurations.
The Standard model reaches 35 knots, while the Ultra model can reach 45 knots.
The specified endurance is approximately 100 nautical miles (185 km) at 20 knots.
The line-of-sight communication range can reach approximately 100 km with the specified antenna configuration. An optional relay UAV can extend communication coverage to approximately 200 km.
Yes. The platform supports customized payload integration, including optical cameras, survey sensors, environmental monitoring systems, communication equipment, and other mission-specific equipment.
Yes. The CXXM series supports coordinated multi-USV operations and can be integrated with relay UAVs, command vehicles, and ground control stations.
Yes. Payload configuration, communication systems, navigation equipment, and other onboard systems can be adapted for specific project requirements.
Looking for a high-speed long-range USV with 350 kg payload capacity for a government, maritime, research, or emergency-response project?
Contact CHINA XINXING for:
