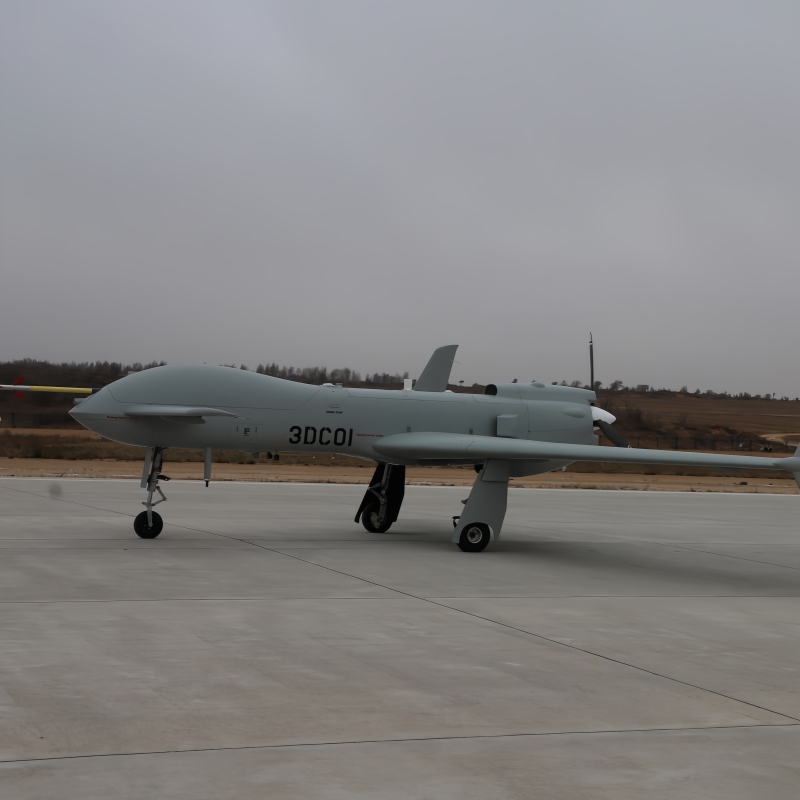

CH-3D light MALE reconnaissance/strike integrated UAV – 28h endurance, 200kg payload, 9000m ceiling, 280km/h max speed. Pusher canard configuration, LOS/SATCOM data link, tricycle retractable landing gear. Complete UAS with 3 aircraft, GCS, and support equipment.
Main Parameters
|
No. |
Specification |
Design Specification |
|
1 |
Max. take-off weight |
≥850 kg |
|
2 |
Max. payload capacity |
200 kg |
|
3 |
Control radius |
200 km (LOS intervisibility) ≥2000 km (satcom data link, within satcom beam coverage) |
|
4 |
Number of hanging weapon |
4 |
|
5 |
Max. level flight speed |
280 km/h |
|
6 |
Cruise speed |
160 km/h~220 km/h |
|
7 |
Service ceiling |
≥ 9000 m (altitude) |
|
8 |
Cruise altitude |
3000 m~6000 m (altitude) |
|
9 |
Max. endurance |
≥ 28h (EO reconnaissance type) |
|
10 |
Take-off/landing mode |
Horizontal wheeled take-off and landing, and automatic take-off and landing (with manual intervention available) |
|
11 |
Take-off and landing run distance |
650 m (sea level) |
|
12 |
Runway entry and exit modes |
Automatic taxiing (with manual intervention available) |
|
13 |
Payload area number |
4 |
|
14 |
Satcom integration |
Supported |
28-Hour Maximum Endurance – Persistent ISR and strike capability for extended missions.

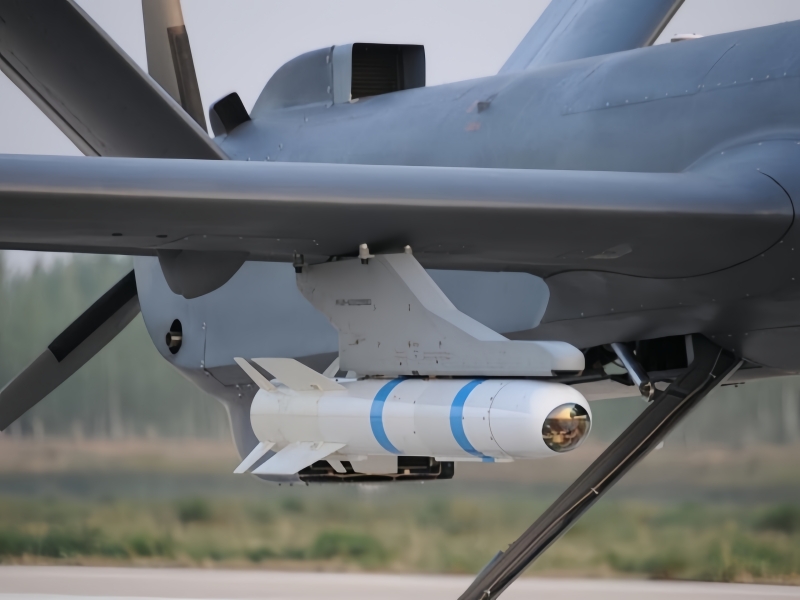

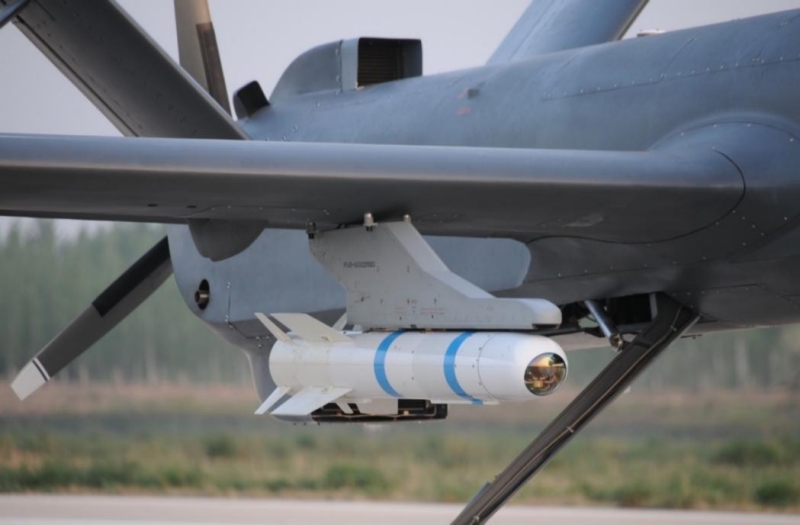

200kg Mission Payload – Carries multiple weapons, sensors, and reconnaissance equipment.
9000m Design Ceiling – Operates at high altitude, above most air defenses and weather.
280km/h Maximum Speed – Rapid response and fast transit to target areas.

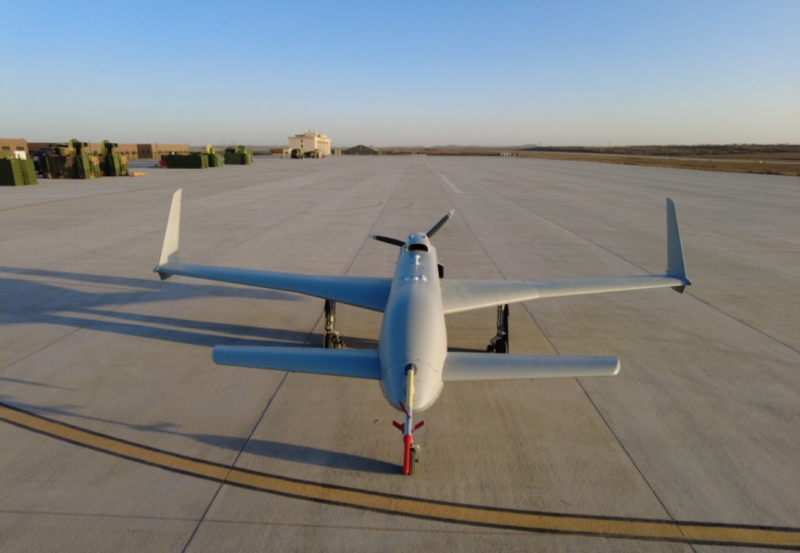

Pusher Canard Configuration – Aerodynamic efficiency with double vertical tails for stability.
Tricycle Retractable Landing Gear – Clean aerodynamic profile during flight, stable ground handling.

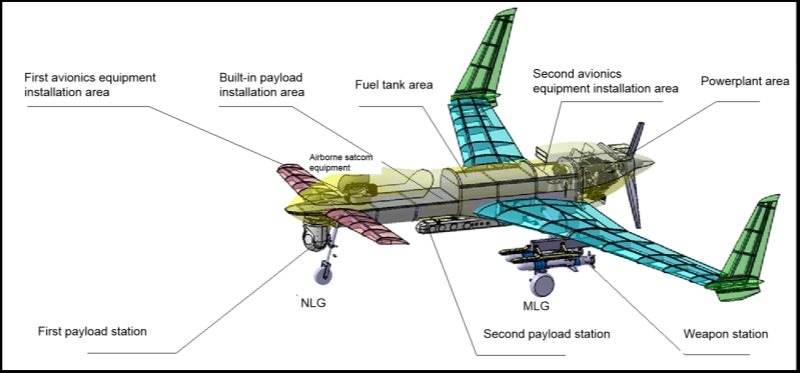

Dual Payload Areas – Nose and middle fuselage configurations for flexible mission equipment installation.
LOS & SATCOM Data Link Options – Standard LOS configuration. SATCOM upgrade available for beyond-line-of-sight operations.
Complete UAS Package – Standard system includes 3 CH-3D UAVs, 1 GCS, ground support equipment, plus payloads and weapons.
Excellent Cost-Effectiveness Ratio – High performance at an affordable price point.
Ideal for:
✔ Persistent intelligence, surveillance, and reconnaissance (ISR)
✔ Precision strike and armed reconnaissance
✔ Border security and maritime patrol
✔ Counter-terrorism operations
✔ Battlefield damage assessment
✔ Beyond-line-of-sight SATCOM missions (optional)
