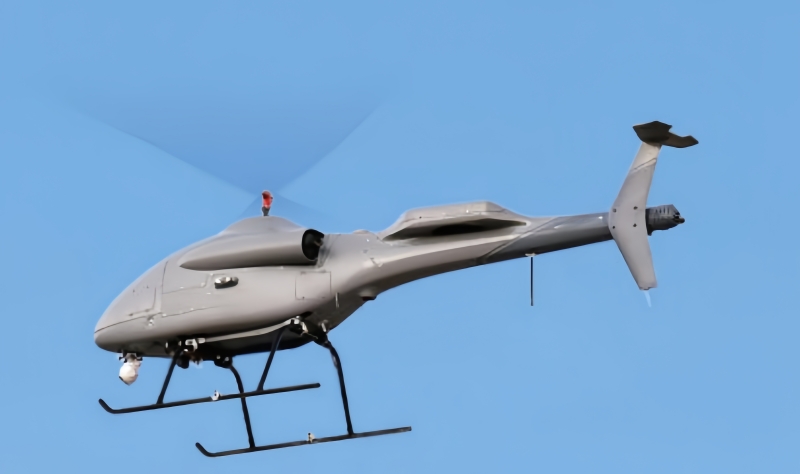

200kg-class single-rotor unmanned helicopter with tail rotor – 50kg payload, 5h endurance, 120km/h max speed, Level 7 wind resistance, moderate rain protection. For inspection, patrol, mapping, and communication relay in maritime, mountain, forest, and desert environments.
|
Length |
3.9m |
Max Flight Speed |
120km/h |
|
Width |
1.0m |
Max Takeoff & Landing Altitude |
2500m |
|
Height |
1.4m |
Service Ceiling |
3000m |
|
MTOW |
220kg |
Endurance |
5h |
|
Max Payload |
50kg |
Wind Resistance |
Level 6 (takeoff & landing) Level 7 (in flight) |
|
Cruise Speed |
(80-90)km/h |
Rain Resistance |
Moderate Rain |
50kg Maximum Payload – Carries heavy sensors, cameras, communication relays, and mission equipment.
5-Hour Endurance – Extended loiter time for long-duration inspection, patrol, and surveillance missions.
120km/h Maximum Speed – Rapid transit to target areas. 80-90km/h efficient cruise speed.
Level 6 Takeoff/Landing | Level 7 In-Flight Wind Resistance – Operates in challenging wind conditions that ground other UAVs.
Moderate Rain Resistance – All-weather mission capability. Not stopped by rain.
3000m Service Ceiling – Reaches high-altitude mountain and forest environments.
2500m Takeoff & Landing Altitude – Operates from high-elevation bases and remote mountain airstrips.
Tail Rotor Configuration – Traditional helicopter design for stable flight and precise hovering.
Maritime, Mountain, Forest, Desert Ready – Versatile platform for the harshest environments.
Inspection | Patrol | Mapping | Communication Relay – One platform, multiple mission roles.
Ideal for:
✔ Maritime patrol and coastal surveillance
✔ Mountain and forest inspection
✔ Power line and pipeline inspection
✔ Aerial mapping and surveying
✔ Communication relay in remote areas
✔ Desert and border patrol
✔ Search and rescue operations
