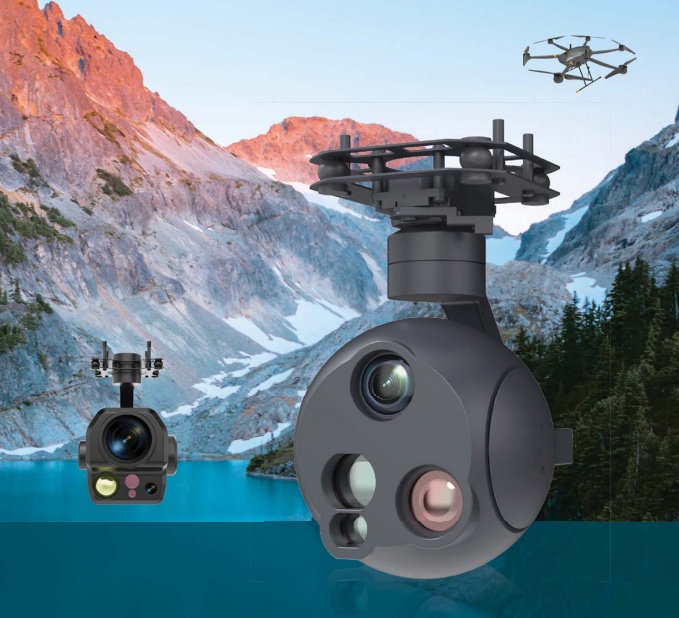

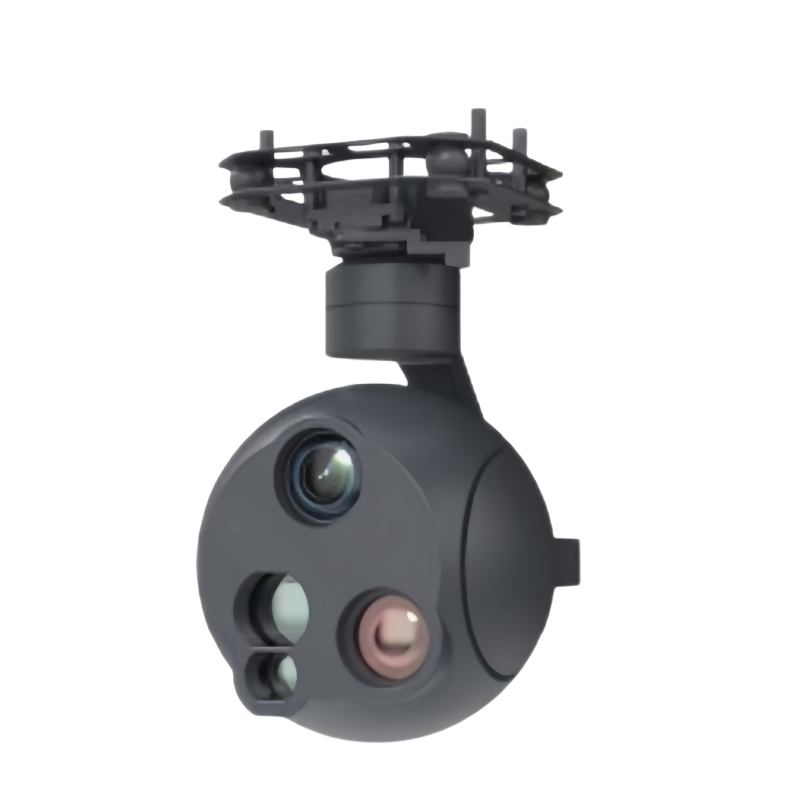

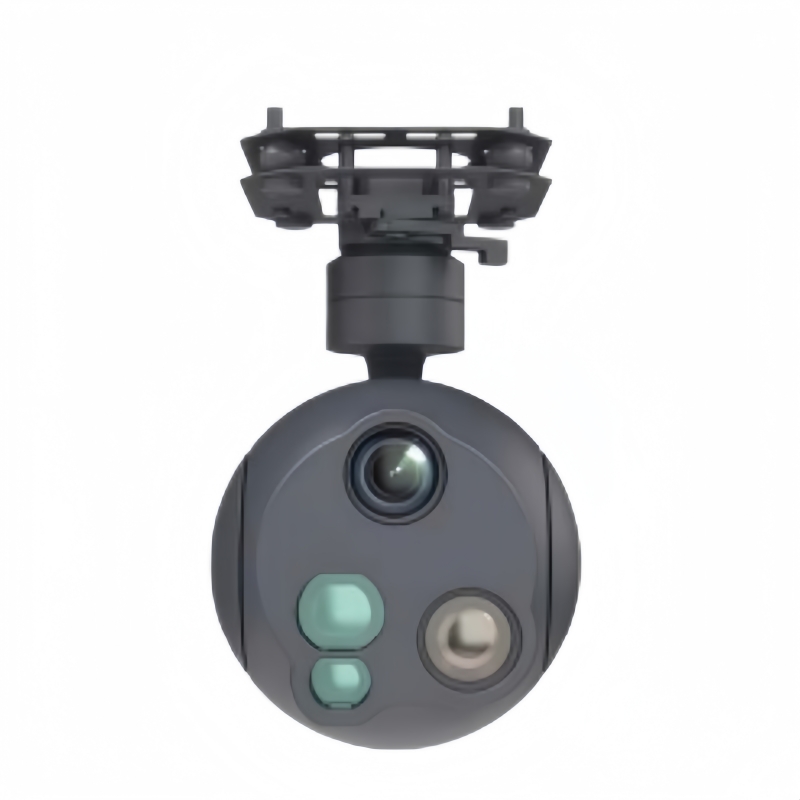

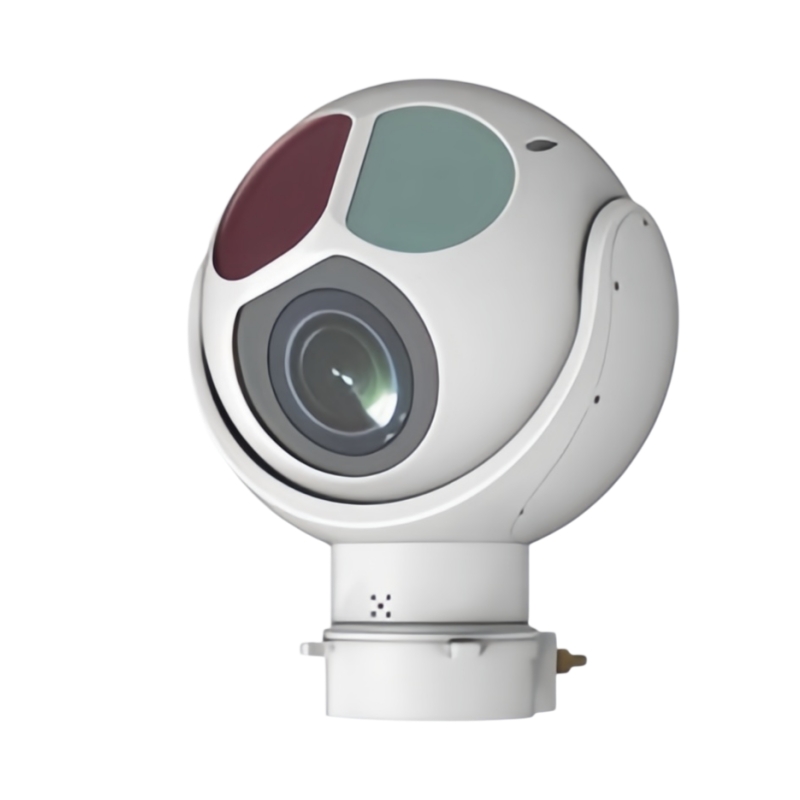

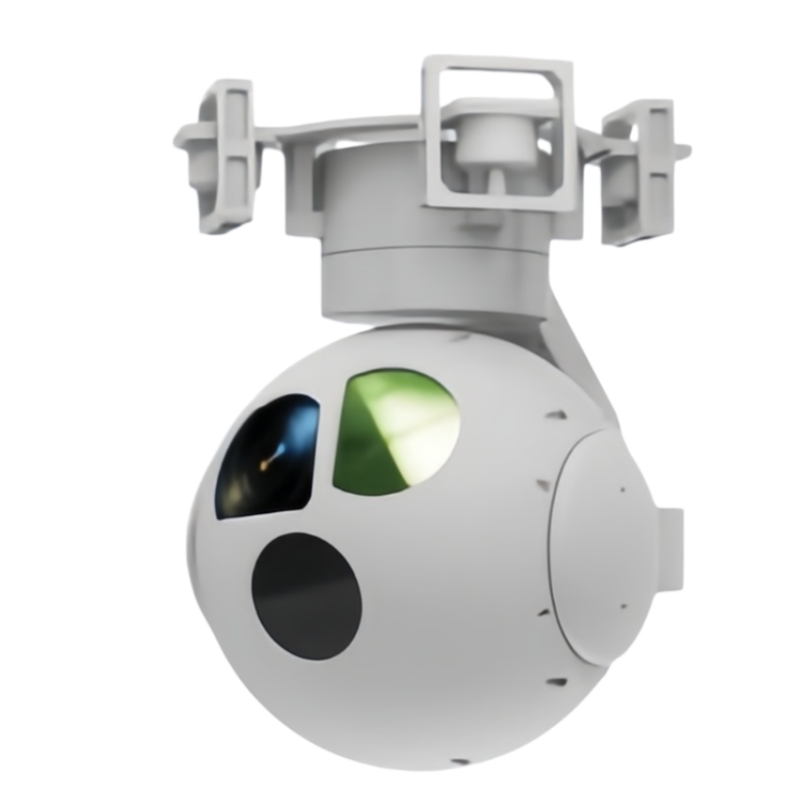

The Lightweight 3-Axis Gimbal Camera Series is engineered for unmanned aerial vehicles requiring compact, high-performance stabilized imaging solutions. Designed for small to medium fixed-wing and multi-rotor UAVs, these gimbals integrate multiple optical payloads including uncooled infrared thermal imagers, continuous zoom visible cameras, and laser rangefinders into a 3-axis servo stabilization platform with AI intelligent image processing. With features such as target automatic recognition, image automatic tracking, and optical/electronic zoom, this series delivers professional-grade aerial reconnaissance and surveillance capabilities in a lightweight, deployable form factor.
Product Overview
The High-Precision Stabilized Payload Series is an advanced lightweight UAV gimbal camera system designed for small and medium unmanned aerial vehicles (UAVs), including multi-rotor drones, VTOL fixed-wing UAVs, and tactical aerial platforms.
Featuring a high-accuracy 3-axis servo stabilization platform, intelligent AI-based target detection and tracking, and multiple sensor configurations, the payload series provides reliable aerial imaging, reconnaissance, surveillance, and inspection capabilities across different operational environments.
Both EO and thermal versions integrate a high-precision 3-axis servo stabilization system designed to maintain clear imaging during UAV flight.
Key stabilization performance:
The stabilization system compensates for UAV vibration and movement, ensuring stable images even during dynamic flight conditions.

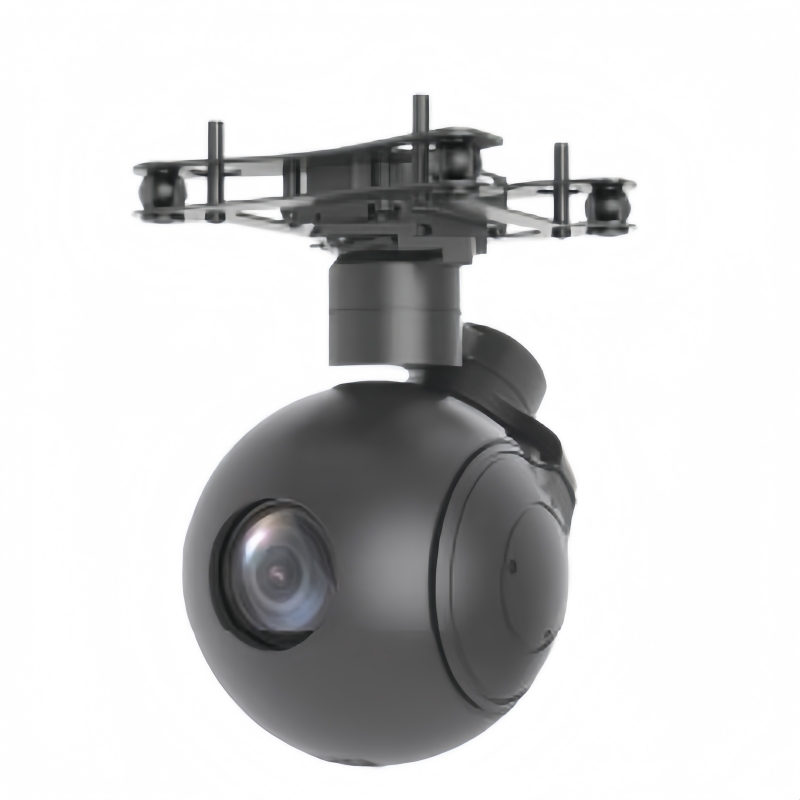

The TX108VA is a lightweight electro-optical UAV payload equipped with a 2MP high-definition camera, continuous 30× optical zoom, and 60× hybrid zoom capability.
Designed for long-range observation missions, the EO gimbal camera provides detailed visual identification and real-time monitoring during daytime operations.
| Parameter | Specification |
|---|---|
| Sensor Type | Electro-Optical Camera |
| Resolution | 2MP |
| Optical Zoom | 30× Continuous Optical Zoom |
| Hybrid Zoom | 60× |
| Field of View | 63.7° × 35.8° ~ 2.3° × 1.3° |
| Focal Length | 4.3mm ~ 129mm |
| Low-Light Capability | 0.01Lux Monochrome |
| Control Interface | RS232 / UART / RS422 / ETH (UDP) |
| Video Interface | Ethernet |
| Storage | Up to 128GB Micro SD |
| Power Supply | 12–32V DC |
| Weight | ≤700g |
| Dimension | 108 × 124.3 × 167.8 mm |
The 30× optical zoom system enables operators to observe distant targets while maintaining image clarity.
Suitable for:
Integrated intelligent algorithms provide:
The AI functions reduce operator workload and improve mission efficiency.

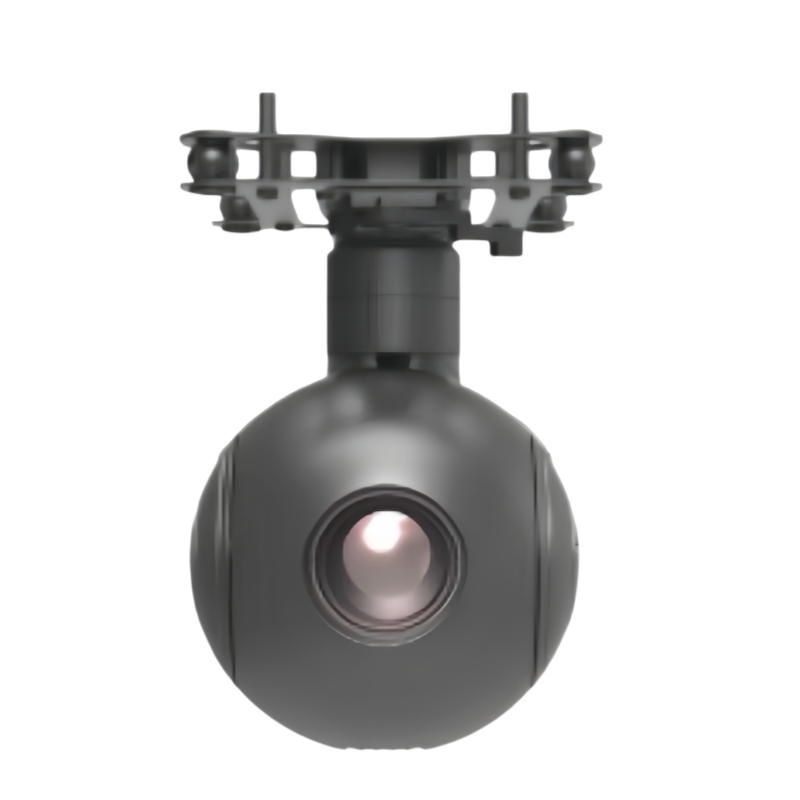

The TX108IA thermal UAV payload is designed for night-time and all-weather aerial detection missions. Equipped with an uncooled thermal imaging sensor, it provides reliable thermal observation capabilities in darkness, smoke, fog, and low-visibility conditions.
| Parameter | Specification |
|---|---|
| Sensor Type | Uncooled Thermal Imaging |
| Resolution Options | 640×512 / 1280×1024 |
| Pixel Pitch | 12μm |
| Lens | 35mm Fixed Focus |
| Field of View | 12.5° × 10° / 25° × 20° |
| Thermal Sensitivity | NETD ≤50mK |
| Digital Zoom | 1×–4× |
| Color Palettes | 6 Modes |
| Control Interface | RS232 / UART / RS422 / ETH (UDP) |
| Video Interface | Ethernet |
| Storage | Up to 128GB Micro SD |
| Power Supply | 12–32V DC |
| Weight | ≤682g |
| Dimension | 108 × 124.3 × 167.8 mm |
The thermal imaging payload can detect heat signatures in environments where traditional cameras may have limited performance.
Applications include:
With NETD ≤50mK thermal sensitivity, the system provides improved temperature differentiation for identifying heat sources.
The UAV gimbal camera series integrates intelligent processing functions:
The system can detect and classify objects automatically, supporting intelligent aerial monitoring.
The payload can lock and follow moving targets during UAV flight.
When the target temporarily disappears, the system can assist in reacquiring the target.
Supported modes include:
The payload series supports flexible integration with various UAV platforms.
Compatible platforms:
Supported protocols:
The quick-release mounting mechanism allows rapid installation and removal for field deployment.
Designed for professional UAV operations, the system provides reliable environmental adaptability.
| Parameter | Specification |
|---|---|
| Operating Temperature | -20℃ to +55℃ |
| Storage Temperature | -40℃ to +60℃ |
| Vibration Resistance | 2g acceleration |
| Shock Resistance | 20g peak acceleration, 11ms |
| Weather Protection | Light Rain Operation |
| Feature | TX108VA EO Gimbal | TX108IA Thermal Gimbal |
|---|---|---|
| Sensor | Optical Camera | Thermal Imager |
| Resolution | 2MP | 640×512 / 1280×1024 |
| Zoom | 30× Optical / 60× Hybrid | 1×–4× Digital |
| Lens | 4.3–129mm Zoom Lens | 35mm Fixed Lens |
| Weight | ≤700g | ≤682g |
| Best Application | Daytime Long Range Observation | Night & All-Weather Detection |
| Main Users | Reconnaissance, Patrol, Inspection | Rescue, Fire Monitoring, Security |
Provides long-range aerial observation for:
Suitable for:
Thermal imaging capability supports:
The payload can assist with:
With a weight of approximately 700g, the system is optimized for small and medium UAV platforms without significantly affecting flight endurance.
The ≤0.1mrad stabilization accuracy ensures clear imaging during complex flight conditions.
Automatic recognition and tracking functions improve operational efficiency.
EO and thermal configurations allow users to select the right payload for daytime, nighttime, and all-weather missions.
MAVLink support and multiple interfaces simplify integration with existing drone systems.
