The Optical Turret Series is a professional long-range electro-optical observation system designed for unmanned ground vehicles (UGV), manned vehicles, unmanned surface vessels (USV), and other mobile platforms requiring reliable surveillance and target identification capabilities.
رقم الصنف :
ZT140TA
Integrating multi-sensor optical payloads, including visible-light zoom cameras, uncooled infrared thermal imaging cameras, and laser rangefinders, the series combines advanced imaging technology with a high-precision 2-axis servo stabilization platform and AI-powered image processing unit.
The turret system provides:
With multiple configurations ranging from lightweight vehicle-mounted solutions to heavy-duty long-range surveillance systems, the Optical Turret Series provides flexible solutions for security monitoring, emergency response, border observation, industrial inspection, and unmanned platform integration.
The Optical Turret Series integrates multiple sensing technologies into one compact stabilized platform.
Available sensor configurations include:
The combination of EO, thermal, and laser technologies provides operators with comprehensive target information.
All models feature a servo-stabilized turret platform designed for operation on moving vehicles and vessels.
Key advantages:
The stabilization system enables clear imaging even when installed on:
The integrated AI processing unit enhances operational efficiency through intelligent functions.
The system can detect and identify objects automatically, reducing operator workload.
The turret can lock onto and follow moving targets.
Features include:
Users can switch between different observation modes according to mission requirements.
| Feature | ZT140TA | ZT190TA | ZT190VA | ZT230TA |
|---|---|---|---|---|
| Configuration | EO + TI + LRF | EO + TI + LRF | EO Only | EO + TI + LRF |
| Turret Type | 2-Axis 3-Sensor | 2-Axis 3-Sensor | 2-Axis Single Sensor | 2-Axis 3-Sensor |
| EO Zoom | 30× Optical / 60× Hybrid | 30× Optical / 60× Hybrid | 55× Optical / 60× Hybrid | 30× Optical / 60× Hybrid |
| Thermal Camera | 640×512 Fixed Lens | 640×512 Continuous Zoom | — | 640×512 Continuous Zoom |
| Laser Rangefinder | 20–3000m | 20–6000m | — | 20–6000m |
| Weight | 2.2kg | 4.8kg | 4.7kg | 8kg |
| Best Application | Lightweight platforms | Long-range surveillance | High zoom visible observation | Heavy-duty surveillance platforms |

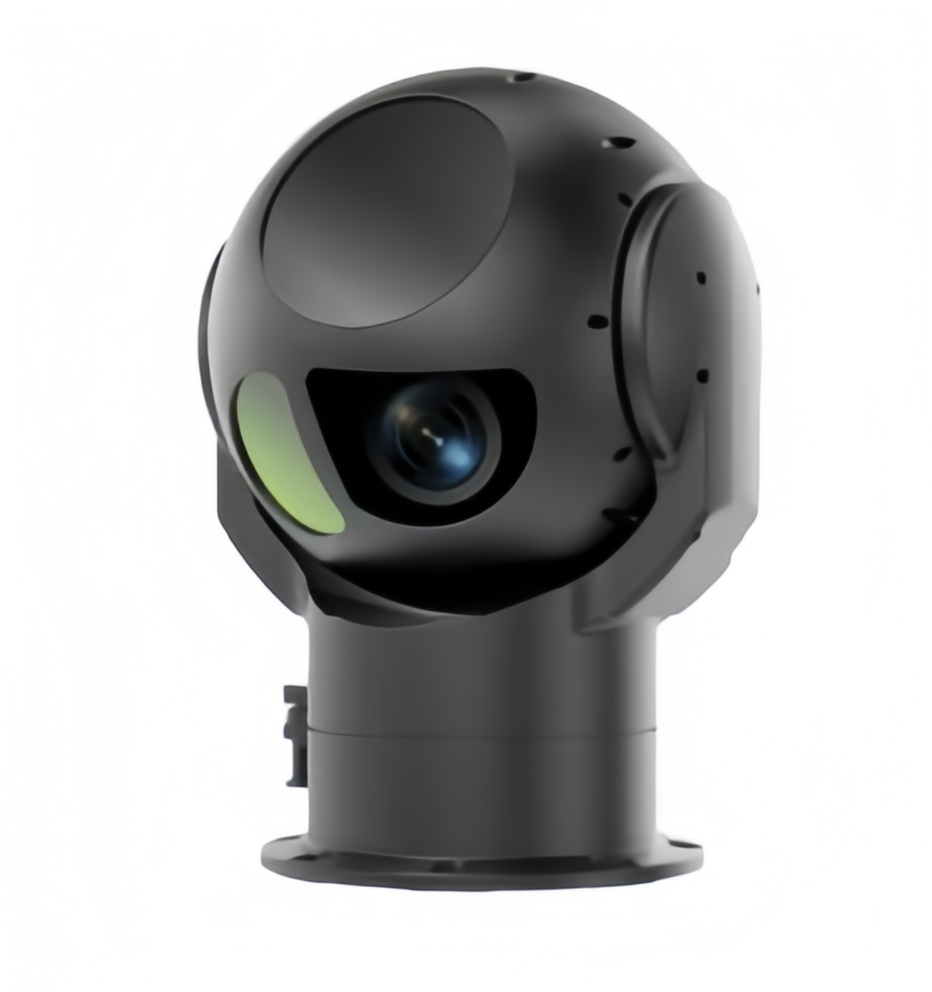

The ZT140TA is the most compact model in the series, designed for platforms requiring high performance with limited payload capacity.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom |
| Hybrid Zoom | 60× |
| EO FOV | 63.7°×35.8° ~ 2.3°×1.3° |
| EO Focal Length | 4.3mm–129mm |
| Thermal Camera | 640×512, 45mm Fixed Lens |
| Thermal Pixel Pitch | 12μm |
| Laser Rangefinder | 20–3000m |
| Weight | 2.2kg |
| Dimension | 139.4×152×202.6mm |
| Power Supply | 20–32V |
The ZT190TA is designed for applications requiring extended observation distance and enhanced thermal detection capability.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom |
| Thermal Camera | 640×512 Continuous Zoom |
| Thermal Lens | 25–75mm |
| Thermal FOV | 17.4°×14° ~ 5.8°×4.7° |
| Laser Rangefinder | 20–6000m |
| Weight | 4.8kg |
| Dimension | 190×200×277mm |

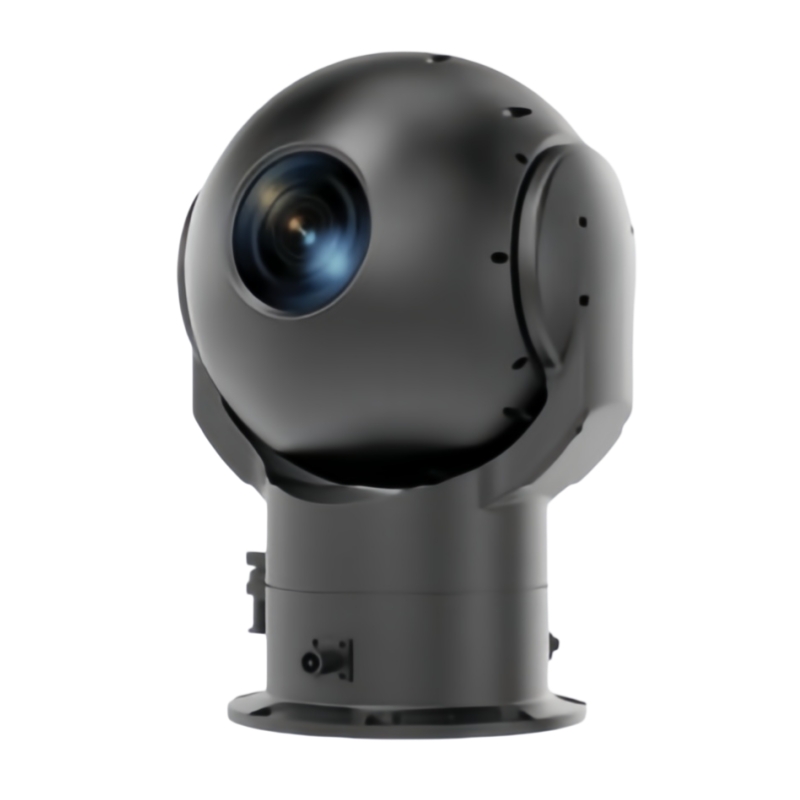

The ZT190VA focuses on long-range visible-light observation, featuring an ultra-high optical zoom camera for applications where thermal imaging is not required.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP |
| Optical Zoom | 55× |
| Hybrid Zoom | 60× |
| Focal Length | 4.25mm–234mm |
| FOV | 69.3°×37.4° ~ 1.5°×0.7° |
| Weight | 4.7kg |
| Dimension | 190×200×286mm |
The ZT230TA is the highest-performance model in the series, designed for larger vehicle platforms requiring maximum detection range and thermal imaging capability.
| Parameter | Specification |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom |
| Thermal Camera | 640×512 Continuous Zoom |
| Thermal Lens | 25–100mm |
| Thermal FOV | 17.5°×14° ~ 4.4°×3.52° |
| Laser Rangefinder | 20–6000m |
| Weight | 8kg |
| Dimension | 230×245×312.6mm |
| Power Supply | 20–32V |
The turret system provides intelligent sensing capability for robotic platforms.
Applications:
Suitable for:
The stabilized turret supports maritime monitoring applications:
Potential applications:
EO, thermal imaging, and laser ranging technologies provide complete observation capability.
Automatic recognition and tracking improve operational efficiency.
Designed for integration with UGV, vehicle, and USV systems.
From lightweight 2.2kg systems to heavy-duty 8kg platforms, customers can select the appropriate configuration.
China Xinxing provides optical payload solutions and customized integration support for professional users and system integrators.
