XPF1214Designed for contractors, quarry operators, and recycling companies, the XPF1214 provides production capacities of 150–450 t/h, making it an ideal Secondary Crushing Plant for processing limestone, recycled concrete, asphalt, sandstone, and other medium- to low-hardness materials.
Modern crushing operations require high productivity, mobility, and intelligent control. The XPF1214 integrates crushing, screening, conveying, and automation into a single Crawler Mobile Crusher, enabling faster deployment and more efficient material processing.
Key advantages include:
High-capacity impact crushing up to 450 t/h
Double-layer pre-screening for improved efficiency
Intelligent automatic feeding system
Hydraulic crusher adjustment
Wireless remote control
Low fuel consumption
Reduced wear costs
Compact transport dimensions
Easy relocation between job sites
| Parameter | Specification |
|---|---|
| Processing Capacity | 150–450 t/h |
| Maximum Feed Size | 700 mm |

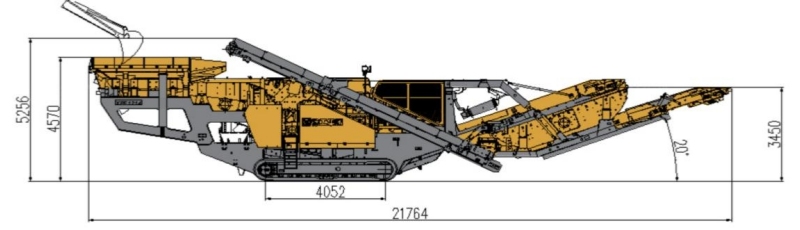

| Feeding Height | 4570 mm |
| Hopper Capacity | 4 m³ (Standard) / 6 m³ (Extension) |
The intelligent feeding system continuously adjusts the feed rate according to crusher load and material level, maximizing production while preventing overload and material blockages.
| Parameter | Specification |
|---|---|
| Type | Double-Layer Heavy-Duty Screening Machine |
| Drive Power | 2 × 5.6 kW |
| Upper Screen Angle | 7° |
| Lower Screen Angle | 17° |
The integrated pre-screening unit removes fine materials before they enter the crusher, significantly reducing wear, lowering energy consumption, and improving overall plant efficiency.
| Parameter | Specification |
|---|---|
| Feed Opening | 1300 × 900 mm |
| Rotor Diameter | 1200 mm |
| Rotor Width | 1280 mm |
| Rotor Speed | 32–40 m/s |
The optimized impact chamber and direct-drive rotor deliver excellent crushing performance, producing high-quality cubical aggregates with improved particle size distribution.
| Parameter | Specification |
|---|---|
| Center Distance | 9700 mm |
| Belt Width | 1400 mm |
| Drive Power | 11 kW |
| Belt Speed | 1.31 m/s |
The wide conveyor ensures smooth and continuous material transport, supporting stable high-capacity production.
A large screening area separates fines before crushing, reducing unnecessary material entering the crusher and increasing throughput. This design extends wear part life while lowering fuel and power consumption.
The feeding system continuously monitors crusher load and automatically adjusts material flow to maintain optimal operating conditions.
Benefits include:
Stable production
Improved capacity
Reduced downtime
Lower fuel consumption
Enhanced equipment protection
The direct-drive rotor and optimized arc blow bar design provide:
Higher crushing efficiency
Better particle shape
Uniform aggregate grading
Increased reduction ratio
Reduced operating costs
This makes the XPF1214 an ideal Aggregate Crusher and Stone Crusher Machine for premium aggregate production.
The hydraulic discharge adjustment system allows operators to quickly change product size without manual intervention, improving productivity and reducing setup time.
Built-in intelligent protection systems include:
Automatic tramp metal release
Zero-point calibration
Consistent product size control
Enhanced equipment safety
Reduced maintenance costs
An optional return conveyor transforms the machine into a complete Crushing and Screening Plant, automatically returning oversized material to the crusher until the desired product specification is achieved.
Advantages include:
Higher finished product quality
Better particle gradation
Increased production efficiency
Lower material waste
The XPF1214 features an advanced digital operating platform with:
Wireless remote control
One-touch start and shutdown
Real-time fault diagnosis
Touchscreen interface
Equipment monitoring
Optional mobile App monitoring
Cloud-based telematics
Operators can monitor machine performance remotely, improving fleet management and maintenance planning.
Designed for sustainable crushing operations, the plant includes:
Low-pressure dust suppression
Noise reduction technology
Positive-pressure electrical cabinet
Magnetic separator
Ground protection crawler tracks
These features help reduce environmental impact while improving workplace safety.
The XPF1214 can be customized to suit different applications.
| Category | Available Options |
|---|---|
| Hopper | Extension Board |
| Pre-Screen | Grating, Screen Mesh, Perforated Plate |
| Blow Bars | Chrome Steel, Manganese Steel, Martensitic, Ceramic Composite |
| Screening | Additional Mobile Screening Plant |
| Return Conveyor | Closed-Circuit Screening |
| Magnetic Separation | Extended Magnetic Separator |
| Weighing | Integrated Weighing System |
| Monitoring | Camera System, Online Monitoring, Mobile App |
| Cold Weather | Engine Low-Temperature Start Package |
| Undercarriage | Ground Protection Track Shoes |
Every XPF1214 Portable Impact Crusher comes equipped with:
Hydraulic folding hopper
Variable-speed vibrating feeder
Double-deck pre-screening system
Rotor locking device
Blow bar replacement swing arm
Chrome blow bars
Hydraulic discharge adjustment
Zero-point detection
Overload protection
Natural fines conveyor
Vibrating discharge system
Return conveyor
Touchscreen operating system
Automatic lubrication system
Dust suppression system
Magnetic separator
Wireless remote controller
The XPF1214 is a powerful Quarry Crusher and Aggregate Production Equipment solution for producing high-quality construction aggregates.
Suitable materials include:
Limestone
Sandstone
Granite (secondary crushing)
Gravel
River stone
As a professional Construction Waste Crusher, the plant efficiently processes:
Reinforced concrete
Demolition waste
Bricks
Cement blocks
Building debris
Recovered materials can be reused in road construction and infrastructure projects.
The XPF1214 functions as a high-capacity Concrete Recycling Crusher, producing recycled aggregates suitable for civil engineering and commercial construction.
Designed as an efficient Asphalt Recycling Crusher, the machine processes reclaimed asphalt pavement (RAP) for reuse in new road construction projects.
The XPF1214 also serves as a reliable Mining Crusher for secondary crushing of medium-hard ores and industrial minerals.
Our worldwide service network provides comprehensive lifecycle support to maximize equipment availability.
Service commitment includes:
15-Minute Response – Immediate technical acknowledgment
2-Hour Support – Remote or on-site assistance
24-Hour Resolution Target – Fast problem-solving to minimize downtime
Comprehensive services include:
Equipment commissioning
Operator training
Spare parts supply
Preventive maintenance
Technical consulting
Remote diagnostics
Lifecycle support
| Advantage | Customer Benefit |
|---|---|
| High Capacity | Processes up to 450 t/h for demanding crushing applications |
| Superior Product Shape | Optimized impact crushing produces high-quality cubical aggregates |
| Energy Efficient | Reduced fuel and power consumption through intelligent feeding and pre-screening |
| Intelligent Automation | Remote control, real-time monitoring, and automatic diagnostics |
| Low Environmental Impact | Dust suppression, low noise, and magnetic separation |
| Excellent Mobility | Compact tracked design enables rapid relocation |
| Global Support | Comprehensive after-sales service and technical assistance |
The XPF1214 is suitable for limestone, sandstone, recycled concrete, reclaimed asphalt pavement (RAP), demolition waste, gravel, and other medium- to low-hardness materials.
Yes. It is specifically designed as a Concrete Recycling Crusher and Asphalt Recycling Crusher, making it ideal for construction and demolition waste recycling projects.
Yes. With the optional closed-circuit screening system, the machine can produce multiple finished aggregate sizes while maintaining excellent particle gradation.
Customers can choose from chrome steel, manganese steel, martensitic steel, or ceramic composite blow bars depending on material abrasiveness and production requirements.
Yes. An optional low-temperature engine start package enables reliable operation in cold-weather environments.
Yes. We offer equipment installation, commissioning, operator training, technical support, spare parts supply, preventive maintenance, and global after-sales service.
