The D260 Crawler Bulldozer is a high-performance Heavy Duty Bulldozer engineered for demanding earthmoving, mining, infrastructure development, and land preparation projects. Powered by a 199 kW electronically controlled engine, the D260 combines intelligent machine control, hydraulic pilot blade operation, electronically controlled shifting, and advanced load management technology to deliver powerful pushing performance, excellent fuel efficiency, and reliable operation in the toughest working conditions.
Available in both Standard and LGP (Low Ground Pressure) configurations, the D260 is designed to maximize productivity across construction sites, mining operations, wetlands, and other challenging terrains.
Modern earthmoving projects require equipment that delivers maximum pushing power while minimizing operating costs. The D260 integrates intelligent control systems, efficient power management, and a durable undercarriage to improve productivity, operator comfort, and long-term reliability.
Key advantages include:
Intelligent electronic machine management
Powerful 199 kW Stage III / Euro IV engine
Hydraulic pilot blade control
Electronically controlled transmission
Heavy-duty crawler undercarriage
Standard and LGP models for different ground conditions
Excellent stability on steep slopes and soft terrain
Low maintenance and high reliability
Whether used as a Construction Bulldozer, Mining Bulldozer, or Land Clearing Bulldozer, the D260 delivers dependable performance in large-scale earthmoving applications.
| Parameter | D260 Standard | D260-LGP |
|---|---|---|
| Operating Weight | 24,600–24,750 kg | 26,550–26,570 kg |
| Minimum Turning Radius | 4,500 mm | 3,800 mm |
| Ground Pressure | 66 kPa | 35–35.2 kPa |

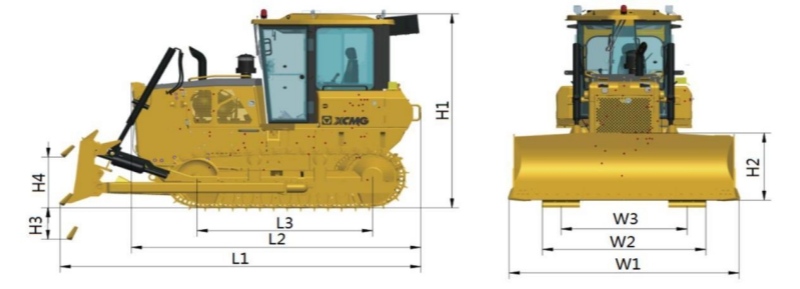

| Overall Dimensions (L×W×H) | 5,590 × 3,725 × 3,527 mm | 6,060 × 4,365 × 3,554 mm |
The D260-LGP features wider tracks and significantly lower ground pressure, making it ideal for wetlands, marshes, and other soft-ground applications.
| Parameter | Specification |
|---|---|
| Engine Model | SC9DF270G3 / G4 |
| Engine Type | Electronically Controlled Direct Injection, Turbocharged, Intercooled, Water-Cooled |
| Rated Power | 199 kW @ 2,000 rpm |
| Emission Standard | Stage III / Euro IV |
The electronically controlled engine delivers strong torque, excellent fuel economy, and dependable performance for continuous heavy-duty operation.
The D260 features a modern 7-inch color LCD touchscreen that provides real-time operational data, enabling operators to monitor machine performance and improve productivity.
Displayed information includes:
Engine operating status
Gear position
Travel information
Fuel consumption
Working hours
Maintenance reminders
Fault diagnosis
System alerts
This intelligent interface supports predictive maintenance and minimizes unexpected downtime.
The electronically controlled engine is equipped with a variable power management system offering three selectable operating modes.
Benefits include:
High pushing performance
Lower fuel consumption
Reduced emissions
Optimized engine efficiency
Automatic power matching
Lower operating costs
The system automatically delivers the power required for each working condition without unnecessary fuel usage.
The electronically controlled transmission provides smooth and efficient gear shifting, while the hydraulic pilot control system delivers precise blade operation.
Advantages include:
Accurate grading
Faster response
Smooth blade movement
Improved operator control
Higher earthmoving efficiency
This combination makes the D260 equally effective for rough dozing, fine grading, and large-scale site preparation.
The spacious operator cab is designed to improve safety, visibility, and comfort during long working hours.
Features include:
ROPS/FOPS certified protection
Panoramic visibility
Ergonomic controls
Air conditioning
Low-noise interior
Vibration-isolated seat
The ergonomic design reduces operator fatigue while improving productivity and job site safety.
The reinforced crawler undercarriage is engineered for maximum durability and stability in demanding environments.
Benefits include:
Excellent traction
Superior climbing ability
Stable operation on slopes
Reduced ground pressure (LGP model)
Long service life
Reliable performance in mud, sand, and rocky terrain
The optimized weight distribution helps maintain machine balance even when operating on slopes up to 45°.
The D260 is an ideal Road Construction Bulldozer for:
Subgrade preparation
Embankment construction
Site leveling
Road widening
Earth filling
As a professional Mining Bulldozer, the machine supports:
Overburden removal
Haul road maintenance
Stockpile management
Mine site preparation
Ripping operations
An optional three-tooth ripper increases productivity in hard soil and weathered rock.
The D260 is widely used as a Site Preparation Bulldozer for:
Industrial parks
Commercial developments
Residential projects
Utility installations
Land reclamation
The D260-LGP Low Ground Pressure Bulldozer is specifically designed for:
Wetlands
Marshland
Peat fields
Soft clay
Sensitive environmental areas
Its wide track shoes significantly reduce ground pressure while maintaining excellent traction.
The bulldozer is also suitable for:
Dam construction
Canal excavation
River training
Railway projects
Airport construction
Customize the D260 to match your project requirements:
| Option | Benefit |
|---|---|
| LGP Configuration | Lower ground pressure for wetlands and soft terrain |
| Three-Tooth Ripper | Higher productivity in compacted soil and rock |
| Coal Handling Package | Optimized for bulk material handling |
| Cold Weather Package | Reliable operation in low-temperature environments |
| Camera Monitoring System | Improved visibility and operational safety |
| Advantage | Customer Benefit |
|---|---|
| High Productivity | Powerful engine and efficient drivetrain maximize pushing performance |
| Fuel Efficiency | Intelligent power management lowers operating costs |
| Intelligent Operation | Digital touchscreen with diagnostics and maintenance management |
| Operator Comfort | Spacious ROPS/FOPS cab with ergonomic controls |
| Excellent Versatility | Standard and LGP models for diverse working conditions |
| Heavy-Duty Reliability | Reinforced undercarriage built for continuous operation |
| Global Support | Worldwide parts availability and technical service |
Our global support network provides comprehensive lifecycle services to maximize machine availability and productivity.
Support services include:
15-Minute Response – Immediate technical assistance
2-Hour Support – Rapid remote or on-site service
24-Hour Resolution Target – Fast troubleshooting and repair
Equipment commissioning
Operator training
Preventive maintenance
Spare parts supply
Remote diagnostics
Technical consulting
The D260-LGP (Low Ground Pressure Bulldozer) features wider track shoes and significantly lower ground pressure, making it ideal for wetlands, marshes, and other soft-ground applications where standard crawler dozers may sink or lose traction.
The D260 is designed for road construction, mining, quarry operations, land clearing, infrastructure development, site preparation, water conservancy projects, and large-scale earthmoving.
The machine supports both single-shank and optional three-shank ripper configurations, allowing operators to efficiently break compacted soil, frozen ground, and weathered rock before dozing.
The integrated touchscreen continuously displays machine status, fuel consumption, maintenance intervals, fault codes, and operating data. This helps operators optimize machine performance, reduce downtime, and improve maintenance planning.
Yes. We offer equipment commissioning, operator training, preventive maintenance, spare parts supply, remote diagnostics, and global technical support to ensure maximum machine uptime throughout its service life.
