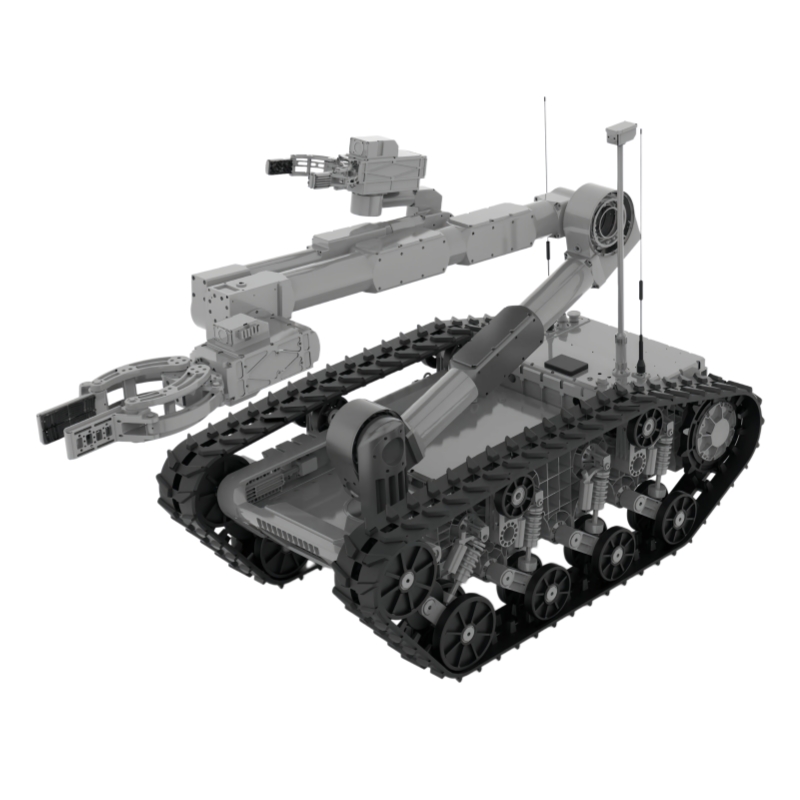

Heavy-duty multi-purpose EOD robot – 400kg, 120kg max grab weight, 9-DOF dual gripper arm, 3.5m vertical reach, Christie suspension, IP66 protection, 6h runtime, -40°C to +50°C operation. For extreme environment bomb disposal and hazardous material handling.
| Parameter | Specification |
|---|---|
| Weight | ≤400 kg |
| Dimensions (L×W×H) | ≤1500 × 850 × 1200 mm |
| Maximum Speed | ≥3 m/s (10.8 km/h) |
| Obstacle Clearance | ≥200 mm |
| Maximum Slope | ≥30° |
| Maximum Grab Weight | ≥120 kg |
| Manipulator DOF | 9 degrees of freedom |
| Grippers | Dual grippers |
| Vertical Reach | ≥3,500 mm |
| Number of Cameras | ≥7 |
| Wireless Range | ≥500 m |
| Protection Rating | IP66 |
| Runtime | ≥6 hours |
120kg Maximum Grab Weight – Lifts heavy IEDs, unexploded ordnance, vehicle bombs, and large suspicious packages.
9-DOF Dual Gripper Arm – Two grippers working in coordination – hold, cut, lift, and manipulate with human-like dexterity.
3.5m Vertical Reach – Reaches truck beds, aircraft cargo holds, second-story windows, and elevated threat locations.
Christie Suspension System – Superior all-terrain mobility – smooth navigation over rubble, rocks, and rough terrain.
7 Cameras for Full Visibility – Complete situational awareness – no blind spots during critical disposal operations.
500m Wireless Range – Operate from safe distance – keep personnel out of blast zone.
IP66 Protection – Dust-tight and protected against high-pressure water jets – operates in any weather.
Extreme Temperature Operation – -40°C to +50°C – arctic cold to desert heat, this robot works.
≥6 Hour Runtime – Extended missions without battery swap or recharge.
400kg Rugged Chassis – Built for the worst environments – heavy, stable, and unstoppable.
Ideal for:
✔ Military EOD units
✔ Police bomb squads
✔ Vehicle bomb response
✔ Unexploded ordnance (UXO) removal
✔ Aircraft and truck cargo inspection
✔ Heavy hazardous material handling
✔ Urban warfare and counter-IED operations
