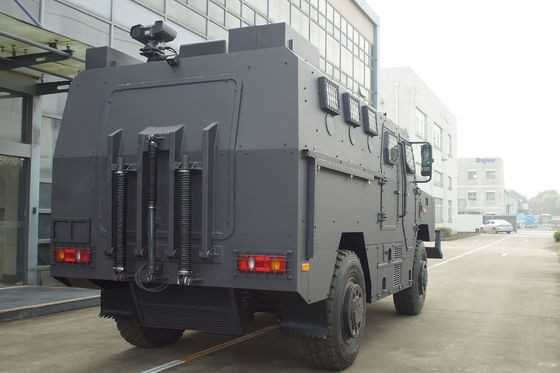

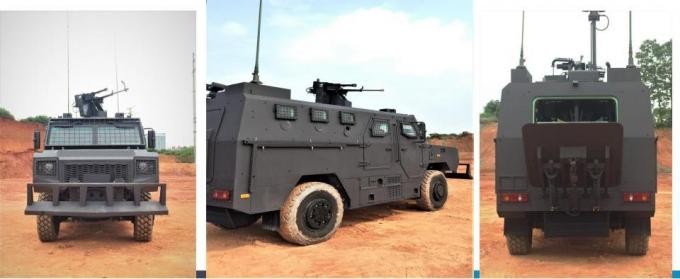

مركبة مكافحة الشغب/شاحنة شرطة مدرعة بعجلات لمكافحة الشغب تابعة للجيش/هيكل عسكري رباعي الدفع رقم 3 شاحنة مكافحة الشغب

The NR3 4×4 Armored Anti-Riot Vehicle is a high-performance protected vehicle designed for police forces, public security organizations, and professional response teams requiring reliable mobility, personnel protection, and mission flexibility in complex environments.

Built on a military-grade 4×4 chassis and powered by a 6.7L turbo diesel engine, the vehicle combines strong off-road capability, armored protection, and multi-purpose operational functions. It can support various missions including personnel transport, command communication, obstacle removal, and urban security operations.



With a modular design approach, the NR3 can be configured with different mission equipment according to specific operational requirements.

Advanced Protection and Tactical Mobility

The NR3 armored vehicle is designed to provide enhanced protection while maintaining excellent mobility across urban and off-road environments.

The vehicle features an armored structure that can be upgraded from STANAG Level 1 protection to NATO STANAG Level 3 capability, providing improved resistance against ballistic threats. Additional floor protection upgrades are available to enhance mine blast protection capability.

Key protection features include:

  • Modular armor upgrade capability
  • Enhanced crew and passenger protection
  • Optional anti-shock floor protection system
  • Reinforced vehicle structure for demanding operations

Powerful 4×4 Performance for Multiple Environments

Equipped with a Cummins 6.7L turbo diesel engine and automatic transmission system, the NR3 delivers strong power output and reliable field performance.

The 4×4 drivetrain enables operation across:

  • Urban roads
  • Rough terrain
  • Mud and uneven surfaces
  • Emergency response areas
  • Remote operational locations

Its high mobility design allows teams to deploy quickly in challenging environments.


Multi-Mission Configuration Capability

The NR3 is designed as a flexible platform that can be adapted for different operational roles.

Possible configurations include:

Personnel Transport

The vehicle provides protected transportation for police, security personnel, and tactical teams.

Command and Communication Platform

Integrated communication and command systems can transform the vehicle into a mobile operational center.

Obstacle Removal and Response Operations

The platform can support specialized equipment for emergency response and field operations.

Security and Public Safety Support

Optional systems can enhance situational awareness and operational effectiveness.

Available equipment options may include:

  • Closed or semi-closed turret systems
  • Communication and command equipment
  • Real-time image transmission systems
  • 360° observation systems
  • Fire suppression systems
  • Specialized mission modules

Key Technical Specifications

Item Specification
Model CX21LYX0507
Vehicle Type 4×4 Armored Anti-Riot Vehicle
Drive Mode 4×4
Engine 6.7L Turbo Diesel
Maximum Power 180 kW / 2500 rpm
Maximum Torque 925 N·m / 1400 rpm
Maximum Speed 105 km/h
Maximum Range 1000 km
Seating Capacity 10-12 Personnel
Layout Driver + Co-pilots + Gunner + Personnel
Gross Vehicle Weight 12,500 kg
Payload Capacity 2,000 kg
Tire Size 365/85R20
Dimensions 6270 × 2340 × 2700 mm
Ground Clearance 350 mm
Maximum Gradient 60%
Maximum Side Slope 40°
Maximum Fording Depth 750 mm
Vertical Obstacle Crossing 450 mm
Trench Crossing Capability 650 mm

Applications

The NR3 armored anti-riot vehicle is suitable for:

  • Police public security operations
  • Riot control missions
  • Emergency response teams
  • Urban security operations
  • Government security projects
  • Protected personnel transportation
  • Command and communication support

Professional Armored Vehicle Supplier

China Xinxing Xiamen Import and Export Co., Ltd. provides specialized vehicle solutions for government organizations, security agencies, emergency response teams, and international customers.

Our product portfolio includes armored vehicles, emergency response vehicles, firefighting vehicles, unmanned systems, protective equipment, and professional mission-support solutions.

With integrated manufacturing resources and customized configuration capabilities, we support customers with reliable protected mobility solutions for demanding operational environments.

  • شروط الدفع :

    L/C, T/T
  • القدرة على التوريد :

    100 Per Month
  • سعر :

    1-9 Vehicle / US $250,000 | 10-49 Vehicle / US $245,000 | 50+ Vehicle / US $238,000
تحديد
رقم الموديل:CX21LYX0507
الحد الأقصى للطاقة (كيلوواط/دورة في الدقيقة):180/2500
العلامة التجارية:سي اكس اكس ام
مواصفة:6270x2340x2700
أصل:الصين
ميناء:شيامن، الصين
وضع القيادة:4X4
سعة المقاعد:10-12
الوزن الإجمالي للمركبة (كجم):12500
الحمولة (كجم):عام 2000
الإطار:365/85r20
نوع المحرك:محرك ديزل توربو سعة 6.7 لتر
وصف المنتج أسئلة وأجوبة العملاء
اسأل عن شيء لمزيد من التفاصيل
NRتعتمد مركبة مكافحة الشغب 3 على هيكل عسكري 4X4، ومحرك Cummins ISDe245-30 سعة 6.7 لتر، وناقل حركة أوتوماتيكي Allision، مع حمولة تصل إلى 2 طن. هو - هي يمكن الترقية بسرعة إلى حلف شمال الأطلسي ستاناغ 3 على قاعدة ستاناغ درع واحد للجسم، لتحمل رصاصات عيار 7.62 AP وشظايا قذائف الهاون عيار 60 ملم. يمكن تحسين الأرضية لـ ستاناغ 2 لمقاومة الألغام المضادة للدبابات التي يبلغ وزنها 6 كجم من خلال ترقية إضافية مضادة للصدمات نظام.

NR3- تتمتع مركبة مكافحة الشغب بقدرات ممتازة في مكافحة الإرهاب الحضري، مثل الدفاع والهجوم والاتصالات و
القيادة ونقل الأفراد,إزالة العوائق والعمليات المحددة الأخرى.
NRيمكن تجهيز 3 مركبات مكافحة الشغب ببرج مغلق / نصف مغلق، ومدفع رشاش ثقيل 12.7، وقاذفة مكافحة الشغب 38 ملم، ونظام اختراق العوائق، ونظام إطفاء حريق الجسم، ونظام تشتيت صوتي، ونظام الاتصالات والقيادة، ونظام الدوران 360 ونظام نقل الصور في الوقت الحقيقي وفقًا لمتطلبات المهمة المحددة.

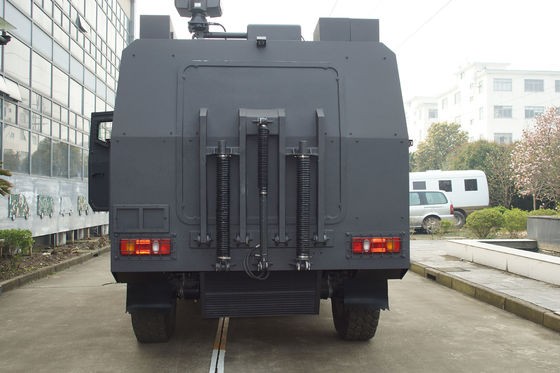

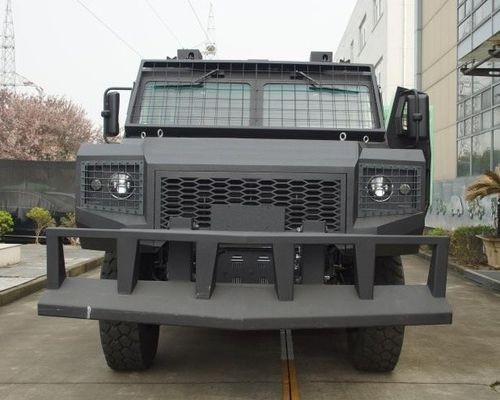

Anti Riot Vehicle/Army Anti-Riot Wheeled Police Armoured Truck/4X4 Military Chassis Nr3 Anti Riot Truck

مواصفة
الجر4×4
سعة المقاعد10-12
الوزن الإجمالي للمركبة (كجم)12500
الحمولة (كجم)عام 2000
إطار365/85R20
الأبعاد (الطول × العرض × الارتفاع) (مم)6270x2340x2700
نوع المحركمحرك ديزل توربو سعة 6.7 لتر
أقصى قوة (كيلوواط/دورة في الدقيقة)180/2500
عزم الدوران الأقصى (نيوتن متر/دورة في الدقيقة)925/1400
أقصى سرعة على الطريق (كم/ساعة)105 كم/ساعة
أقصى مسافة للتحمل (كم)1000 كم
القدرة على الصعود60%
أقصى زاوية لفة40%
الخلوص الأرضي (مم)350 ملم
أقصى عمق للعبور (مم)750 ملم
التغلب على العوائق العمودية
الارتفاع (مم)
450 ملم
عرض معبر الخندق (مم)650 ملم

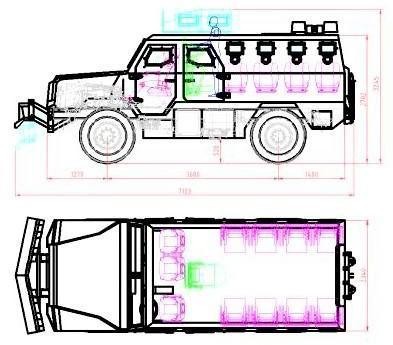

تَخطِيط 3+9 مقاعد :1 سائق، 2 مساعد طيار، 1 مدفعي، 8 جنود
