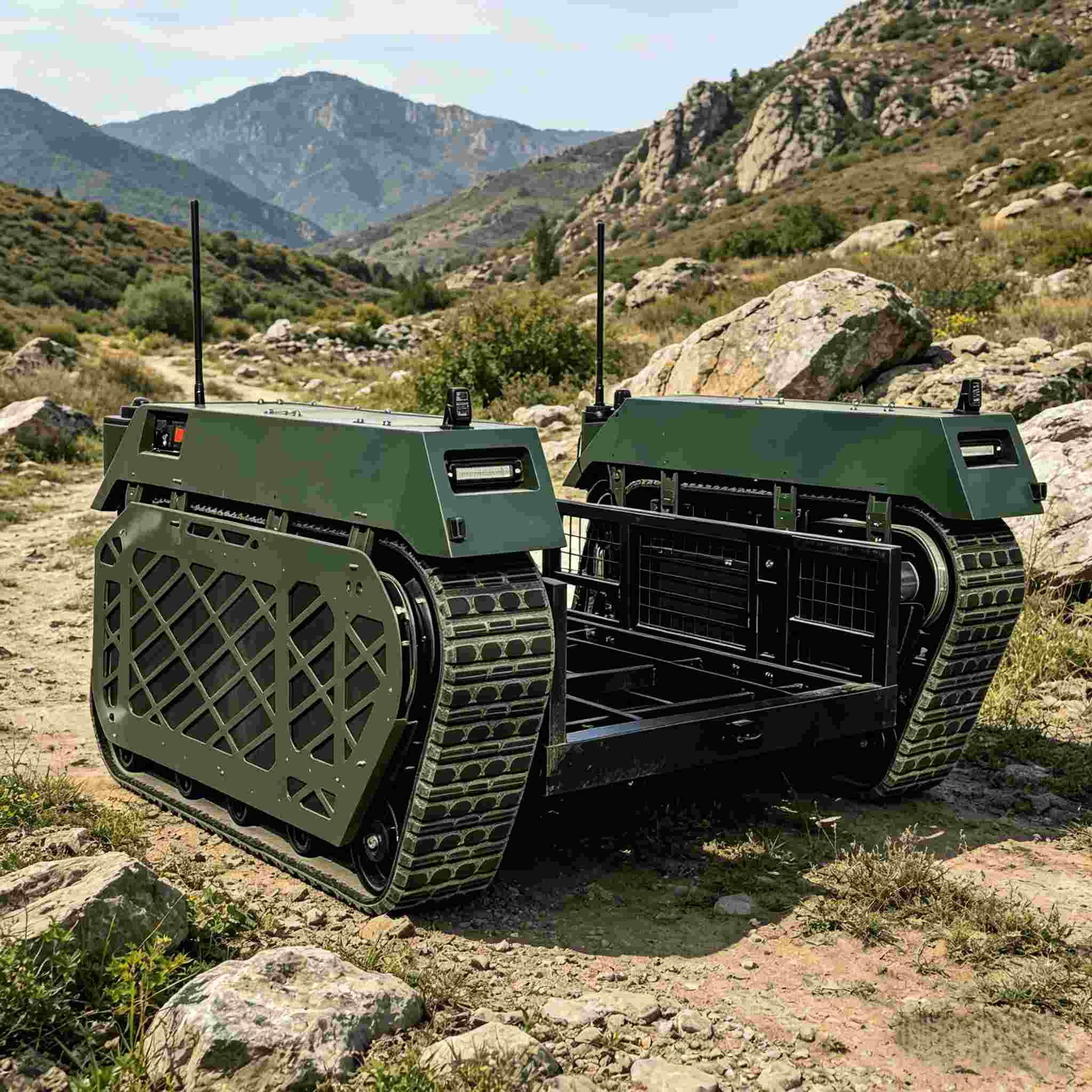

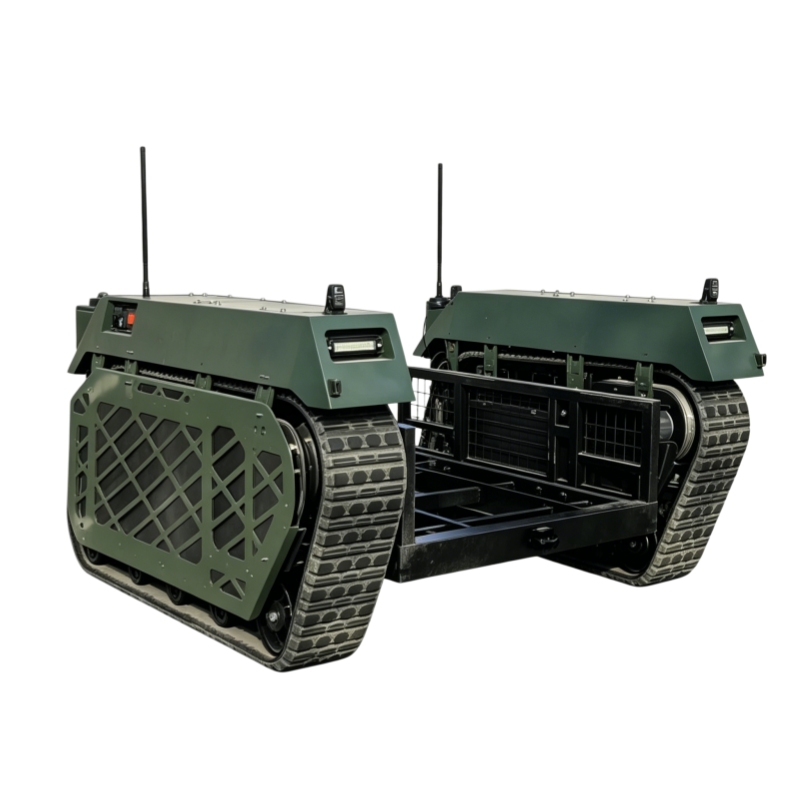

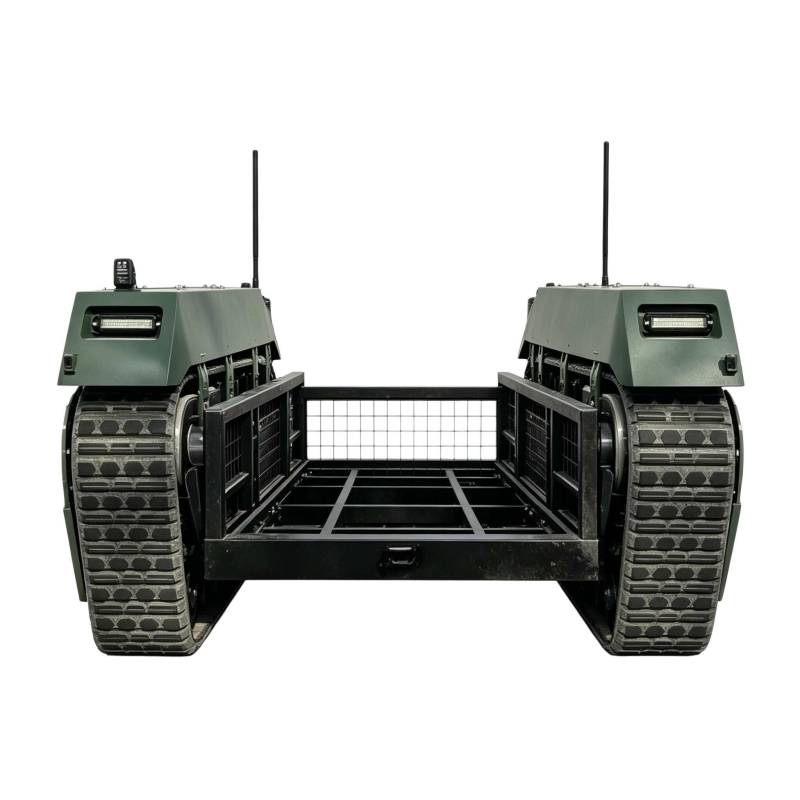

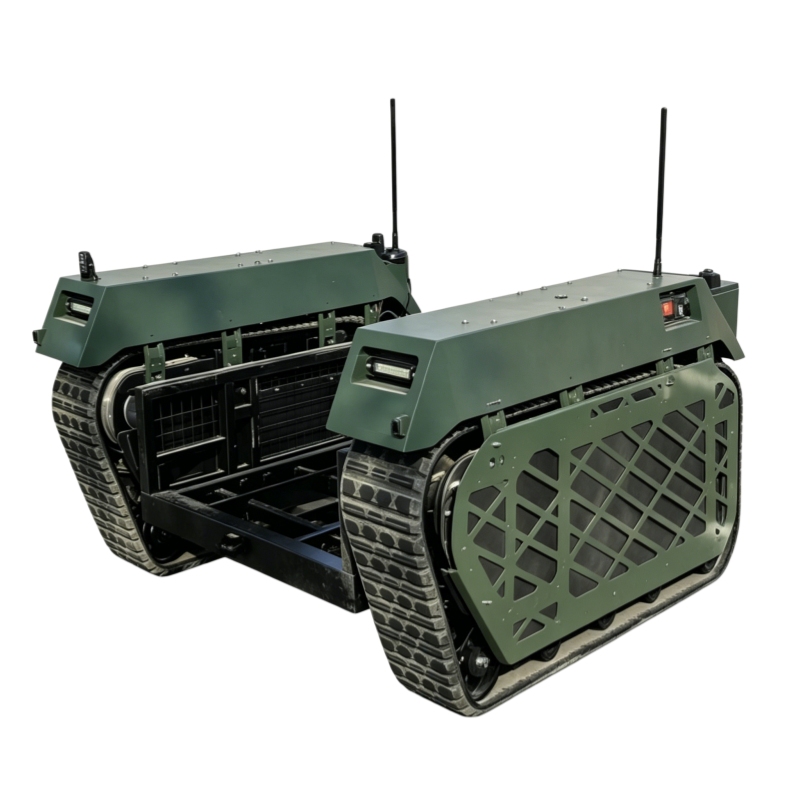

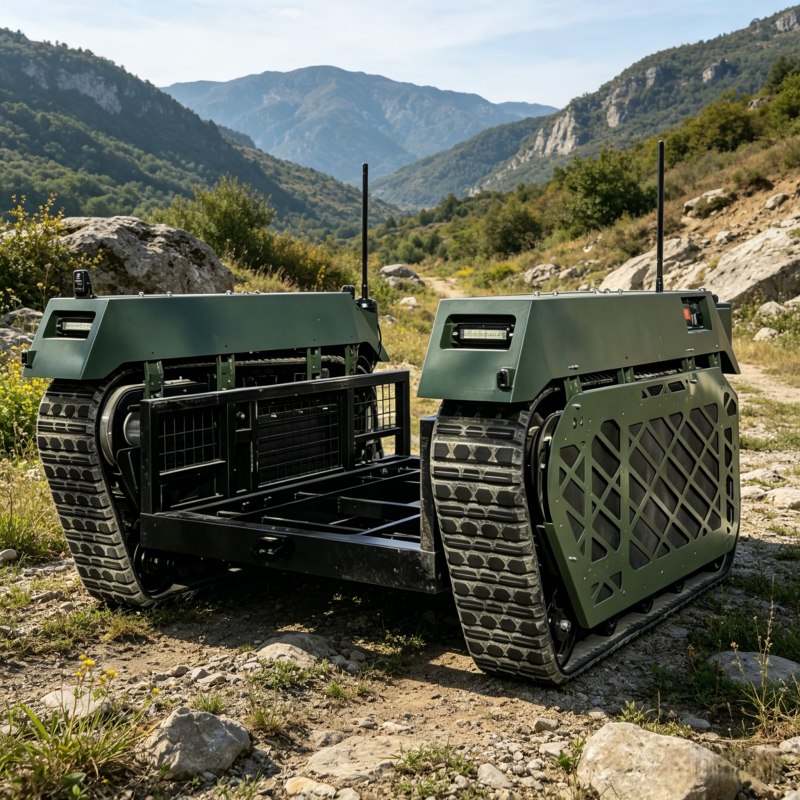

Featuring an open architecture compatible with various mission payloads, the M5 All-Terrain Tracked UGV allows efficient integration, flexible equipment upgrades and functional expansion.It supports combat support, counter-UAV, logistics support and collaborative operations.With stable power and high-load reliability, it performs flexible maneuvers in confined spaces and smooth travel across deserts, forests, snowfields and mudflats, ensuring outstanding performance in harsh environments.
Overall dimensions: 2200×1950×1100mm
Curb weight: 1300kg
Max payload: 600kg
Power type: Pure electric drive
Motion mode: Track differential drive, 360° in-situ rotation
Load-bearing frame width**: 1150mm
Max speed: ≥15km/h (customizable)
Endurance time: 3h (customizable)
Driving range: 25km (customizable)
Protection class: IP55
External power supply: DC96V 1000W
Intelligent driving:
- Navigation & positioning: Satellite + inertial navigation integrated solution for real-time position, orientation and attitude calculation.
- Autonomous navigation & obstacle avoidance: Mapping, path planning, autonomous driving; LiDAR-based obstacle avoidance. Supports GPS, Beidou, RTK; independent Beidou positioning available.
Follow-up driving: Autonomous following of individual soldiers and adjacent vehicles.
Open Vehicle Architecture – Compatible with various mission payloads for rapid integration and equipment upgrade flexibility.
High-Load Reliable Operation – Durable design for sustained heavy-duty missions without performance degradation.
Counter-UAV Capable – Dedicated platform for anti-drone detection and neutralization missions.
Logistics Support Ready – Transport supplies and equipment in forward operating areas.
Flexible Confined Space Maneuvering – Agile movement in tight urban environments and restricted areas.
All-Terrain Dominance – Smooth travel across deserts, dense forests, snowfields, and mudflats.
Harsh Environment Certified – Outstanding performance in extreme weather and challenging ground conditions.
Stable Power Supply – Reliable electrical system for extended mission duration.
Collaborative Operations Support – Designed for team-based missions with multiple UGV coordination.
Ideal for：
✔ Counter-UAV / anti-drone operations
✔ Logistics and supply transport
✔ Collaborative multi-robot missions
✔ Reconnaissance and support roles
✔ Harsh environment deployment (desert, forest, snow, mud)
✔ Urban confined space operations
